Pontiac Turbo-Hydramatic Transmission

(M-38)

Parking Lock & Range Selector

1969-72

Illustrated Parts Break Down

Cut Away View
EXPLODED VIEW Converter, Pump, Intermediate & Direct Clutch Mainshaft, Fwd Clutch Low & Reverse Clutch& Output Shaft Valve Body, Servo Piston & Accumulator Case, Extension, Accumulator & Governor

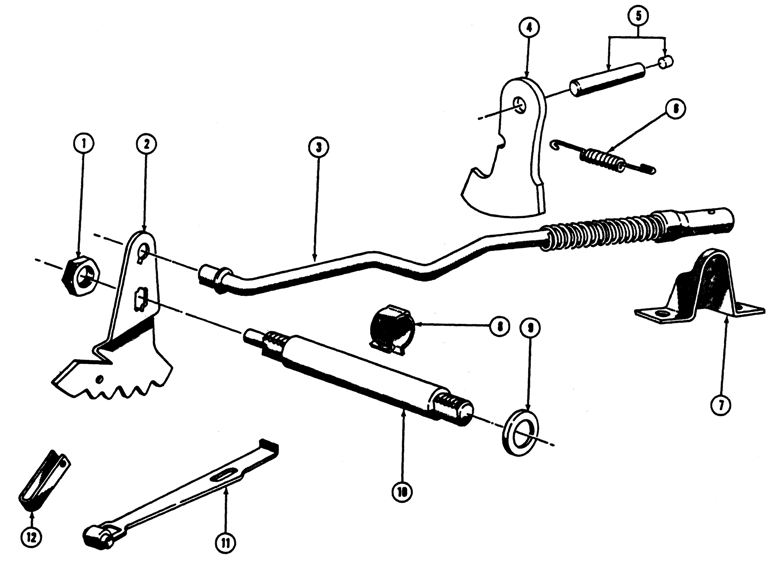

PARKING LOCK
       & RANGE
       SELECTOR


1) Nut, Selector shaft to lever (3/8" - 16)
2) Lever, Parking lock and range selector - inner
3) Actuator assy., Parking lock
4) Pawl, Parking lock
5) Shaft & Plug
pkg., Parking lock
pawl

6) Spring, Parking lock pawl disengaging
7) Bracket, Parking lock and range selector shaft
8) Retainer, Parking lock and range selector shaft
9) Seal, Range
selector shaft oil

10) Shaft, Parking lock and range selector
11) Spring, Detent
12) Clip, Manual valve link

1969-72 Pontiac Turbo-Hydramatic Transmission (M-38) Exploded View



The illustrated parts break down illustrates individual part placement in the assembly.
