Illustrated Parts Break Down


 Cut Away View
 Exploded View

HIGH CLUTCH
AND LOW BAND


1) Ring, High
clutch flange
thrust

2) Bushing, Low
sun gear

3) Flange & Low
Sun Gear assy.,
High clutch

4) Washer, High
clutch hub rear
thrust

5) Hub, Clutch

6) Plate, High
clutch driven

7) Washer, High
clutchhub front
thrust

8) Plate assy.,
High
clutch drive

9) Spring, High
clutch piston

10) Strut, Low
brake band
anchor

11) Ring, High
clutch spring snap

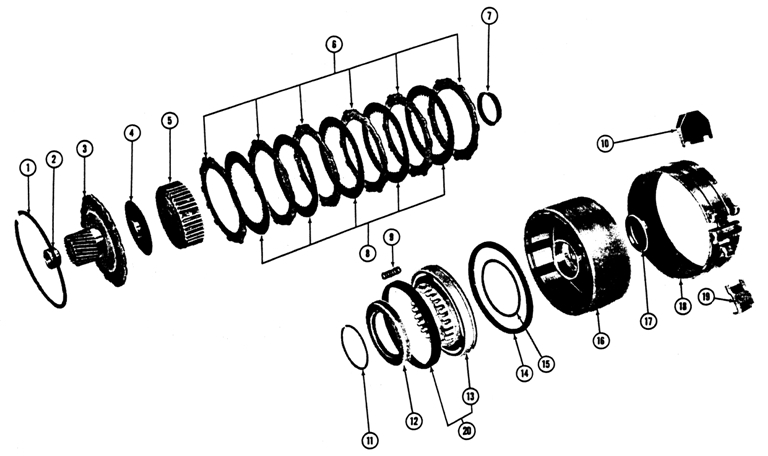

1967-68 Firebird 6 cyl. Automatic Transmission Exploded View
12) Seat, High
clutch spring

13) Piston, High
clutch (1964-65)

14) Seal, Clutch
piston - outer

15) Seal, Clutch
piston - inner

16) Drum, High
clutch w/bushing

17) Bushing, High
clutch drum (1964)

18) Band assy.,
Low brake

19) Strut assy.,
Low brake band
apply

20) Piston &
Cushion assy.,
High clutch
(1966-68)


The illustrated parts break down illustrates individual part placement in the assembly.
