Automatic Transmission

1964-68 Tempest 6 cyl., 326 & 350
1967-68 Firebird 6 cyl., 326 & 350
1969 Firebird & Tempest 6 cyl. 1 Bar. Carb.
1969 Firebird & Tempest 350 2 Bar. Carb.

Illustrated Parts Break Down


Cut Away View
Exploded View

RANGE SELECTOR


1) Shaft, Parking
lock pawl

2) Pawl, Parking
lock

3) Spring, Parking
lock pawl
disengaging

4) Spring
assy., Parking
lock & range
selector detent

5) Bolt, Spring
assy. to case

6) Bolt, Bracket
to case
(5/16" - 18 x 1")

7) Bracket,
Parking lock

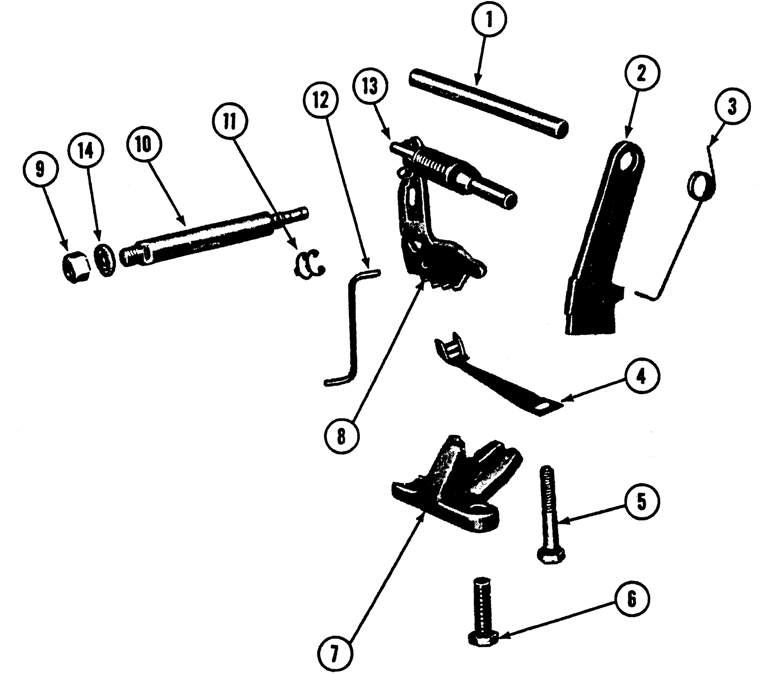

1967-68 Firebird 6 cyl. RANGE SELECTOR Exploded View
8) Lever, Parking
lock &range
selector - inner

9) Nut, Lever &
shaft assy.,
to range selector
lever (3/8" - 16)

10) Shaft, Parking
lock & range
selector

11) Retainer,
Range
selector shaft

12) Link, Range
selector valve

13) Actuator
assy., Parking
lock

14) Seal assy.,
Selector shaft


The illustrated parts break down illustrates individual part placement in the assembly.
