Automatic Transmission

1964-68 Tempest 6 cyl., 326 & 350
1967-68 Firebird 6 cyl., 326 & 350
1969 Firebird & Tempest 6 cyl. 1 Bar. Carb.
1969 Firebird & Tempest 350 2 Bar. Carb.

Illustrated Parts Break Down


Cut Away View
Exploded View

OUTPUT SHAFT

1) Screw &
Lockwashher assy.,
Planet carrier lock
plate

2) Plate, Planet
pinion shaft lock

3) Washer, Planet
pinion front thrust

4) Shaft, Planet
pinion - short

5) Shaft, Planet
pinion - long
6) Pinion, Planet
- short

7) Spacer, Planet
pinion
bearing
(Thick)

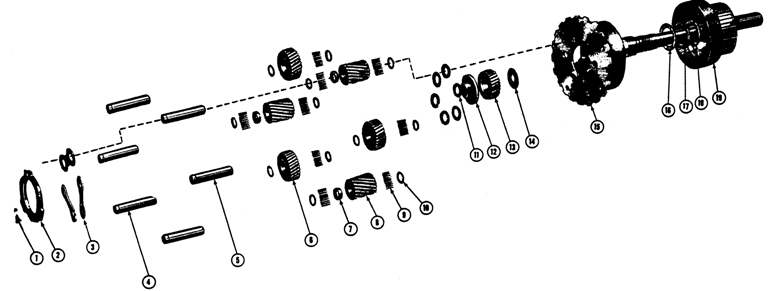

1967-68 Firebird 6 cyl. OUTPUT SHAFT Exploded View
8) Pinion, Planet
- long

9) Bearing kit,
Planet pinion roller

10) Spacer, Planet
pinion needle
bearing -(Thin)

11) Washer, Planet
pinion

12) Bearing assy,,
Low sun gear
needle thrust

13) Gear, Planet
input sun

14) Washer, Input
sun gear to carrier
thrust

15) Carrier &
Output
Shaft assy.,
Planet

16) Race, Planet
carrier to case
thrust bearing
(1-1/2" I,D, x
2-5/32" O.D, x
1/4")

17) Bearing
assy., Planet
carrier to case -
needle

18) Race, Planet
carrier to case
thrust bearing
(1-37/64" 1. D. x
2-11/64"0. D. x
.030)

19) Gear, Trans.
reverse ring


The illustrated parts break down illustrates individual part placement in the assembly.
