Automatic Transmission

1964-68 Tempest 6 cyl., 326 & 350

1967-68 Firebird 6 cyl., 326 & 350

1969 Firebird & Tempest 6 cyl. 1 Bar. Carb.

1969 Firebird & Tempest 350 2 Bar. Carb.



Illustrated Parts Break Down

Cut Away View Exploded View

VALVE BODY

1) Gasket, Valve body plate to case

2) Plate, Trans. valve body

3) Plate, Oil channel support

4) Body, Transmission valve

5) Valve, Converter stator & detent

6) Valve, Transmission shift

7) Washer, Shift valve spring

8) Spring, Shift valve

9) Spring, Stator & detent valve

10) Gasket, Solenoid valve

11) Valve, Solenoid

12) Bolt, Solenoid valve to valve body

13) Clip, Solenoid wires to valve body

14) Pin, Control valve sleeve to body (7/64" x 1-1/8")

15) Sleeve, Shift control valve

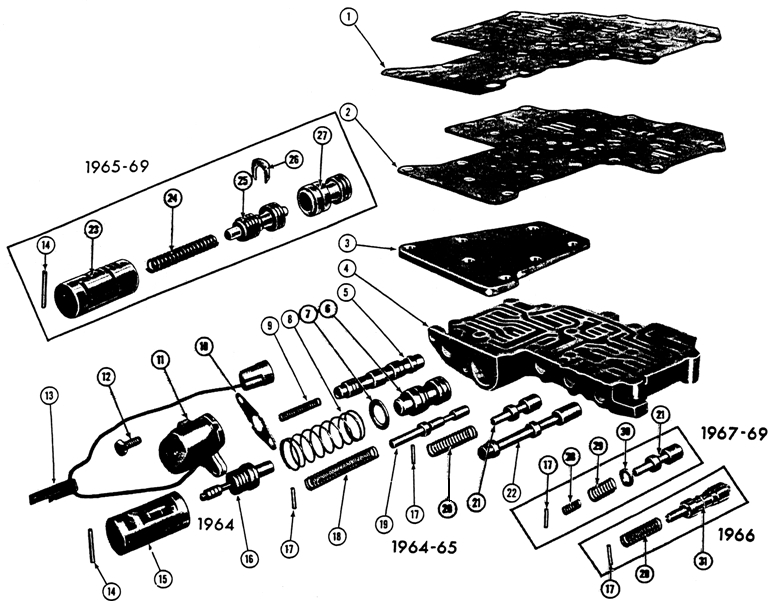

1967-68 Firebird 6 cyl. VALVE BODY Exploded View

16) Valve, Shift control

17) Pin, Valve & spring retainer (7/64" x 3/4")

18) Spring, Modulator limit

19) Valve, Modulator limit

20) Spring, High speed downshift timing valve

21) Valve, High speed downshift timing valve

22) Valve, Range selector

23) Sleeve, Shift control valve (1965)

24) Spring, Shift valve

25) Valve, Shift control

26) Retainer, Shift valve

27) Valve, Shift

28) Spring, High speed downshift timing valve-inner

29) Spring, High speed downshift timing valve-outer

30) Washer, High speed downshift timing valve

31) Valve & Pin assy., High speed downshift timing



The exploded view illustrates individual part placement in the assembly.
