Automatic Transmission

1964-68 Tempest 6 cyl., 326 & 350
1967-68 Firebird 6 cyl., 326 & 350
1969 Firebird & Tempest 6 cyl. 1 Bar. Carb.
1969 Firebird & Tempest 350 2 Bar. Carb.

Illustrated Parts Break Down

Cut Away View
Exploded View

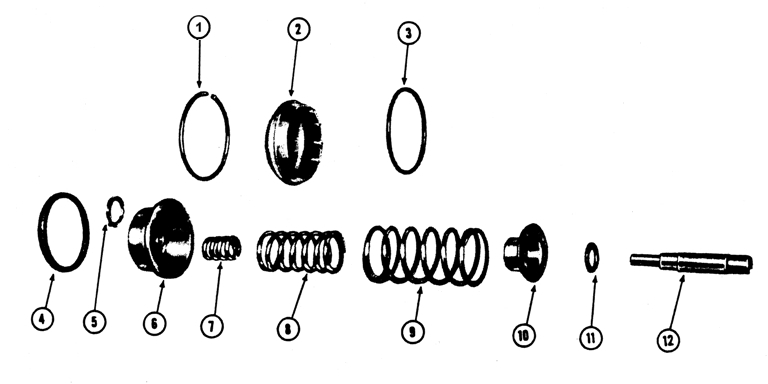

LOW SERVO

1964-65

1) Ring, Low servo
cover retainer

2) Cover, Low
servo

3) Seal, Low servo
cover oil

4) Seal, Low servo piston oil
5) Ring, Low servo
piston rod snap

6) Piston, Trans.
low servo

7) Spring, Low servo piston apply
8) Spring, Low servo piston return - inner
9) Spring, Low
servo piston return
- outer

10) Retainer, Low servo spring
11) Washer, Piston apply spring seat
12) Rod, Low servo piston

1967-68 Firebird 6 cyl. LOW SERVO Exploded View

1964-65 Low Servo

Exploded View

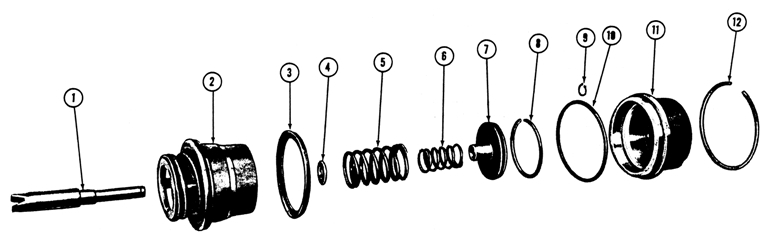

1966-69 Low Servo
1966-69

1) Rod, Low servo
piston

2) Piston, Spring
& Retainer assy.,
low servo secondary
3) Seal, Low servo piston oil
4) Washer, Low
servo cushion
spring retainer

5) Spring, Primary
piston return -inner

6) Spring, Primary piston cushion -outer
7) Piston, Low
servo primary

8) Ring, Primary
piston oil seal

9) Ring, Low servo
piston rod snap
10) Seal, Low
servo cover oil

11) Cover, Low servo
12) Ring, Low servo cover retainer


The illustrated parts break down illustrates individual part placement in the assembly.
