X 307 V8 Crank-Cam-Pan

Illustrated Parts Break Down

1) Sprocket,
Camshaft

2) Chain, Timing

3) Camshaft, Engine

4) Bearing,
Camshaft-front

5) Bearing,
Camshaft-front
intermediate
6) Pin, Piston

7) Piston-pin assy

8) Ring set, Piston

9) Rod, Connecting

10) Bearing,
Connecting rod

11) Bearing cap,
Connecting rod
(part of #9)
12) Nut, Connecting
rod bearing cap
(3/8"-24)

13) Bearing,
Camshaft-center

14) Bearing,
Camshaft-rear
intermediate

15) Bearing,
Camshaft-rear
16) Lifter, Valve

17) Plug, Camshaft
bearing hole

18) Flywheel

19) Lockwasher,
7/16" external
tooth

20) Bolt,
(7/16"-20 x 1")

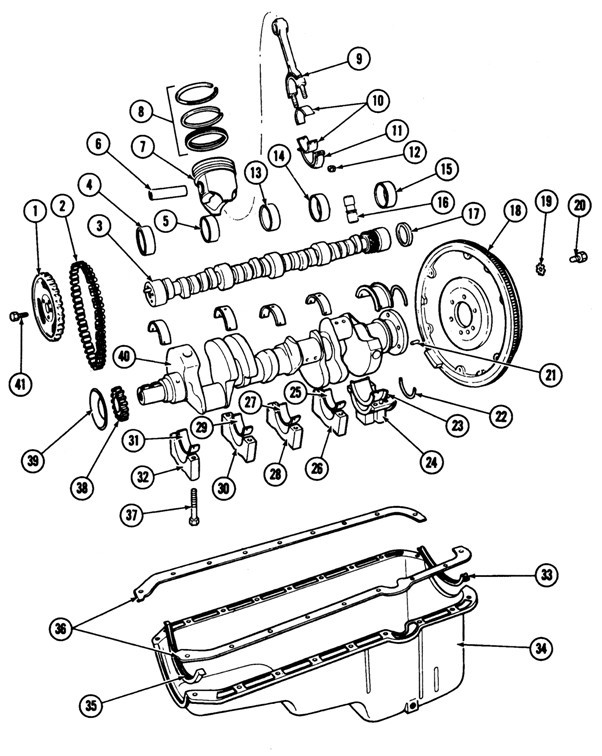

X 307 V8 Crank-Cam-Pan Exploded View
21) Dowel pin,
Flywheel

22) Seal,
Crankshaft rear
bearing oil

23) Bearing,
Crankshaft- rear

24) Cap,
Crankshaft rear
bearing

25) Bearing,
Crankshaft-rear
intermediate
26) Cap,
Crankshaft bearing

27) Bearing,
Crankshaft-center

28) Cap,
Crankshaft bearing

29) Bearing,
Crankshaft-front
intermediate

30) Cap,
Crankshaft bearing
31) Bearing,
Crankshaft-front

32) Cap,
Crankshaft bearing

33) Seal, Oil pan
-rear

34) Pan, Oil

35) Seal, Oil
pan-front

36) Gasket, Oil
pan
37) Bolt,
Crankshaft bearing
cap

38) Sprocket,
Crankshaft

39) Oil slinger

40) Crankshaft

41) Bolt,
(5/16"18 x 7/8")


The illustrated parts break down illustrates individual part placement in the assembly.
