6Cyl. Block

1964-65/1970-75

Illustrated Parts Break Down

1) Ring pkg., Piston

2) Rod assy,
Connecting

3) Distributor assy,
Ignition

4) Clamp,
Distributor

5) Lifter assy, Valve

6) Block

7) Gasket, Push rod
cover

8) Plug, Block oil
gallery (3/8")
9) Plug, Camshaft
rear bearing

10) Cover, Valve
push rod

11) Bearing,
Camshaft
(frt & rear)

12) Seal,
Crankshaft
packing

13) Flywheel assy

14) Bearing,
Camshaft
(rear center)
15) Bearing,
Camshaft
(front center/
rear center)

16) Bearing,
Camshaft
(front &rear)

17) Bolt, Flywheel
to crankshaft

18) Washer,
Flywheel to
crankshaft
(7/16" ext.)

19) Bearing,
Crankshaft rear #7

20) Seal,
Crankshaft packing
21) Cap,
Crankshaft bearing

22) Bolt, Main
bearing cap
(7/16"-14 x 3")

23) Screen, Oil
pump pickup

24) Screw &
lockwasher, Oil
pan

25) Pan, Oil

26) Screw, Oil
pan drain

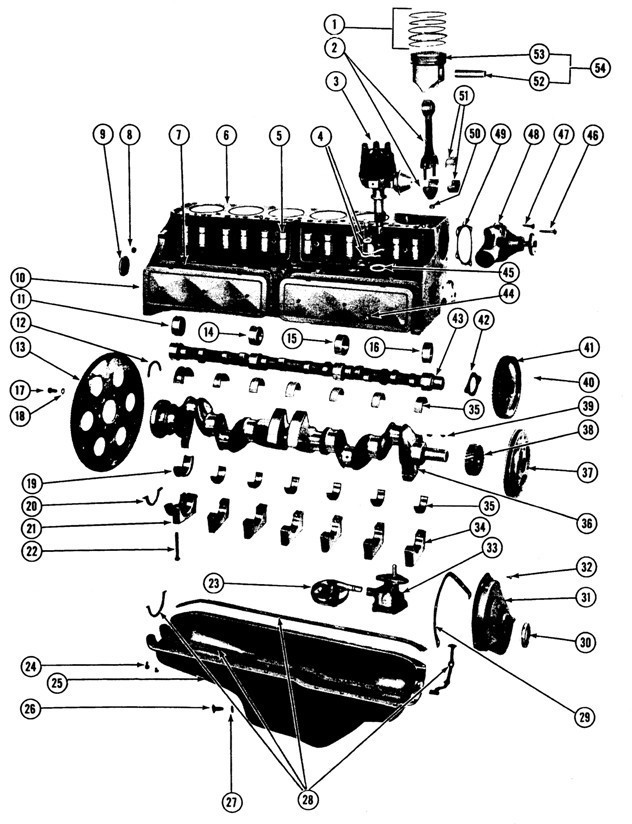

1964-65/1970-75 Pontiac 6Cyl. Block Exploded View
27) Gasket, pan
drain screw

28) Gasket, Oil pan

29) Gasket,
Crankcase front
end cover

30) Seal, Front
cover oil

31) Cover, Front
end

32) Screw &
lockwasher, Front
    end cover
(1/4"-20 x 7/16")

33) Pump, Oil
34) Cap, Crankshaft
 bearing

35) Bearing,
Crankshaft front

36) Crankshaft

37) Balancer,
Harmonic

38) Gear,
Crankshaft

39) Key, Crankshaft
Gear
(3/16" x 3/4")

40) Bolt &
lockwasher,
Crankshaft gear
(1/4"-20 x 1/2")
41) Gear, Camshaft

42) Bearing,
Camshaft thrust

43) Camshaft

44) Bolt & seal,
push rod cover

45) Gasket, Ignition
 distributor

46) Bolt, Water
pump to block
(5/16"-18 x 1 1/2")

47)  Bolt, Water
pump to block
(5/16"-18 x 1")
48) Pump, Water

49) Gasket, Water
pump

50) Nut, Connecting
rod

51) Bearing,
Connecting rod

52) Pin, Piston

53) Piston

54) Piston/pin assy


The illustrated parts break down illustrates individual part placement in the assembly.
