Firebird Steering Wheels

1969-72

Illustrated Parts Break Down

1) Wheel assy.,
Steering - standard

2) Wheel assy.,
Steering - deluxe

3) Wheel assy.,
Steering - custom
sport (Wood)

4) Wheel assy.,
Steering - formula

5) Nut, Wheel
to shaft
(1 1/2" x 20)
6) Screw, Switch
to Hub
(18-32 x 3/8")

7) Switch assy.,
Steering wheel
horn

8) Button, Wheel
horn - RH

9) Cover, Wheel
spoke trim
10) Button, Wheel
horn -LH

11) Screw, Cover
to spoke
(# 8-32 x 11/16")

12)  Button, Wheel
horn -center

13) Extension, Horn
button cap

14) Switch assy.,
Steering wheel
horn
15) Bezel, Horn
button

16) Insulator,
Horn contact

17) Eyelet,
Steering wheel horn
 contact

18) Spring, Horn
contact

19) Button assy.,
Horn (Formula)

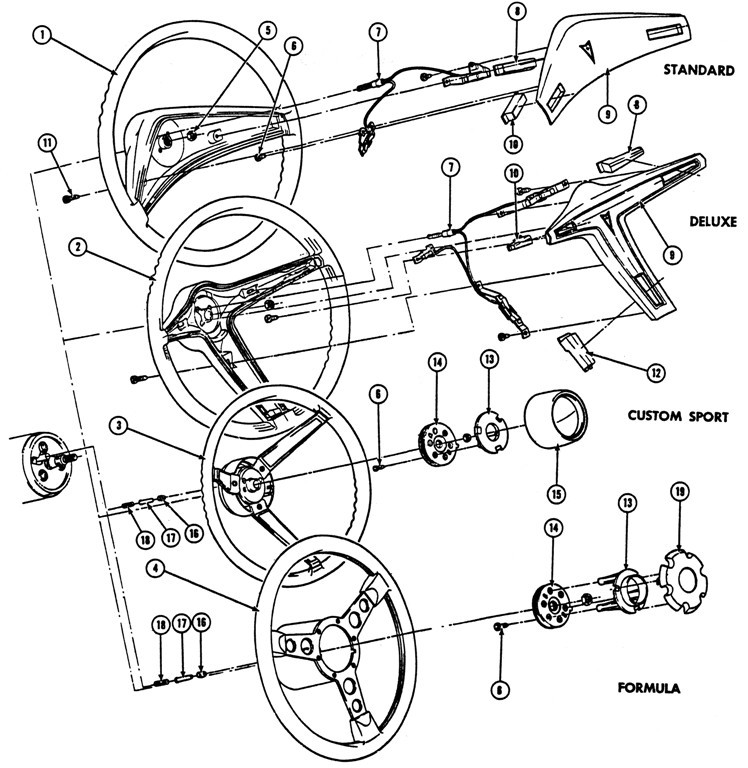

1969-72 Firebird Steering Wheels Exploded View



The illustrated parts break down illustrates individual part placement in the assembly.
