Steering Column Lock Controls

1969 Firebird
1971-72 "X" 3 spd. Trans. only

Illustrated Parts Break Down

1) Rod, Steering
column upper
control

2) Bushing, Strg. col. lower lever - outer 3) Bushing, Strg, col. lower lever - inner
4) Washer, Strg,
col. upper
rod to strg. column 5) Clip, Control lower rod to trans. & idler lever
6) Bushing, Trans. control rod idler lever
7) Lever, Control
rod Idler

8) Lock, Trans. control rod idler lever
9) Rod, Steering
column lock (lower)

10) Cotterpin, Lower rod to 1st & reverse lever
11) Washer, Lower rod to 1st & reverse lever
(25/64" I.D. x 3/4" O. D.)

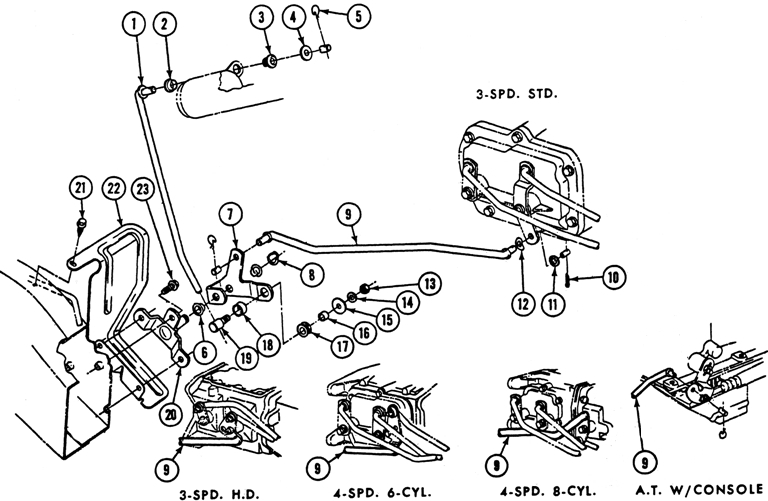

1969 Firebird Steering Column Lock Controls Exploded View
12) Washer, Lower
rod to 1st &
reverse lever
(13/32" ID x 3/4"O.D.)
13) Nut, Control upper rod to idler lever (3/8"-16)
14) Lockwasher, control upper rod to idler lever
(3/8")
15) Washer,
Cont. upper
rod to idler lever
(3/8" ID x 1" OD)
16) Bushing, Control upper rod to idler lever
(3/8" ID x 1/2" long)
17) Grommet, Control upper rod to idler lever
18) Clamp, Control
upper rod to idler
lever
(13/32" ID x 25/32" OD)
19) Swivel, Control upper rod to idler lever
20) Support, Control rod idler lever
21) Screw, Splash
shield to frame
(5/16"-12 x 7/8")

22) Shield, Trans. control splash - frame
23) Screw, Trans. control rod idler lever support
to frame
(5/16"-18x3/4")


The illustrated parts break down illustrates individual part placement in the assembly.
