Firebird L.H. Exterior View

1969

Illustrated Parts Break Down

1) Sealed Beam
Unit, Headlamp

2) Fender, Front

3) Filler, Front
bumper upper
center

4) Panel, Hood

5) Molding,
Windshield reveal
lower
6) Blade,
Windshield wiper

7) Emblem, Hood -
"350"

8) Glass,
Windshield

9) Mirror, Rear
 View -inside

10) Arm assy.,
Windshield wiper
11) Molding,
Windshield reveal
- upper

12) Molding,
Windshield pillar
drip

13) Mirror, Rear
view -outside

14) Panel, Roof
15) Molding, Roof
drip scalp

16) Panel, Rear
quarter side -outer

17) Bumper, Rear

18) Lamp assy.,
Rear side  marker

19) Ring, Wheel
trim

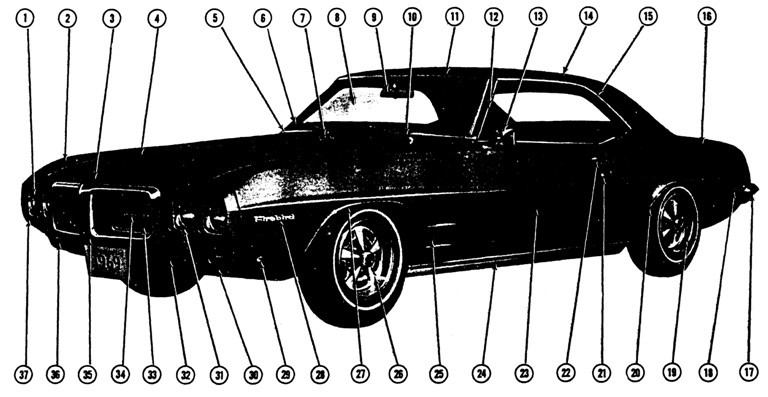

1969 Firebird L.H. Exterior View Exploded View
20) Molding pkg.,
Rear wheel opening

21) Cylinder kit,
Door lock

22) Handle, Front
door outside

23) Door assy.,
Front

24) Molding pkg.,
Rocker panel
25) Ornament,
Front fender side
lower

26) Wheel, Rally II

27) Molding pkg.,
Front fender wheel
opening

28) Plate, Front
fender name -
"Firebird"
29) Lamp assy.,
Front side marker

30) Adapter,
Parking lamp to
valance panel

31) Bezel,
Headlamp-outer

32) Panel, Front
bumper valance
33) Grille, Radiator

34) Plate, Radiator
grille name -
 "Pontiac"

35) Bumper, Front

36) Lamp assy.,
Parking signal

37) Bar assy., Front
bumper outer


The illustrated parts break down illustrates individual part placement in the assembly.
