Firebird Head Light

1969

Illustrated Parts Break Down

1) Screw,
Headlamp bezel
retaining
(#8-18 x 1")

2) Bezel,
Headlamp - inner

3) Bezel,
Headlamp - outer

4) Nut,
Headlamp bezel
retaining
5) Bar assy., Front
bumper outer

6) Ring, Headlamp
retaining

7) Sealed beam
unit, Headlamp -
inboard

8) Sealed beam
unit, Headlamp -
outboard
9) Ring, Headlamp
mounting - inboard

10) Ring,
Headlamp mounting
- outboard

11) Spring,
Headlamp adjusting

12) Bracket,
Headlamp body
mounting
13) Nut &
       Screw assy.,
Headlamp adjusting

14) Body,
Headlamp

15) Screw,Skirt &
Filler to Fender
(1/4"-14 x 3/4")

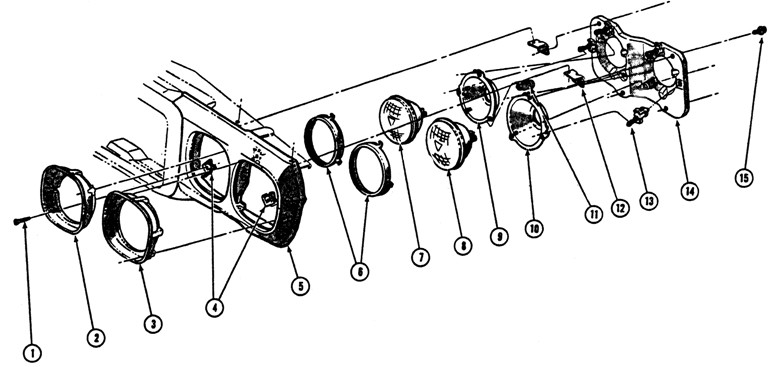

1969 Firebird Head LightExploded View



The illustrated parts break down illustrates individual part placement in the assembly.
