1969

Illustrated Parts Break Down

O.H.C.
SIX-CYLINDER
EXHAUST 1 BARREL
CARBURETOR

1) Flange, Exhaust Pipe
2) Pipe, Exhaust
- Front

3) Pipe, Muffler Tail
4) Pipe, Exhaust - Rear
5) Muffler, Exhaust

A) Bolt, Flange to
manifold
(3/8"-16 x 2") (2 ea.)
B) Clamp pkg., Muffler to
tail pipe
C) Support, Tail
pipe

D) Hanger assy., Exhaust pipe
E) Clamp pkg., Muffler to rear exh. pipe
O.H.C.
SIX-CYLINDER
EXHAUST 4 BARREL
CARBURETOR

1) Pipe, Exhaust -
Intermediate 2) Pipe, Muffler tail
3) Pipe, Exhaust
- Front

4) Pipe, Exhaust - Rear
5) Muffler, Exhaust
A) Bolt, Flange to manifold
(3/8"-16 x 2") (2 ea.)
B) Clamp pkg.,
Muffler to tail
pipe

C) Support assy.,
Tail pipe Screw,
Clamp to Hanger
(#20-9 x 1-1/2")
Screw, Clamp to Frame
D) Clamp pkg.,
Front pipe to
intermediate pipe
E) Hanger assy., Exhaust pipe
F) Clamp pkg., Muffler to pipe

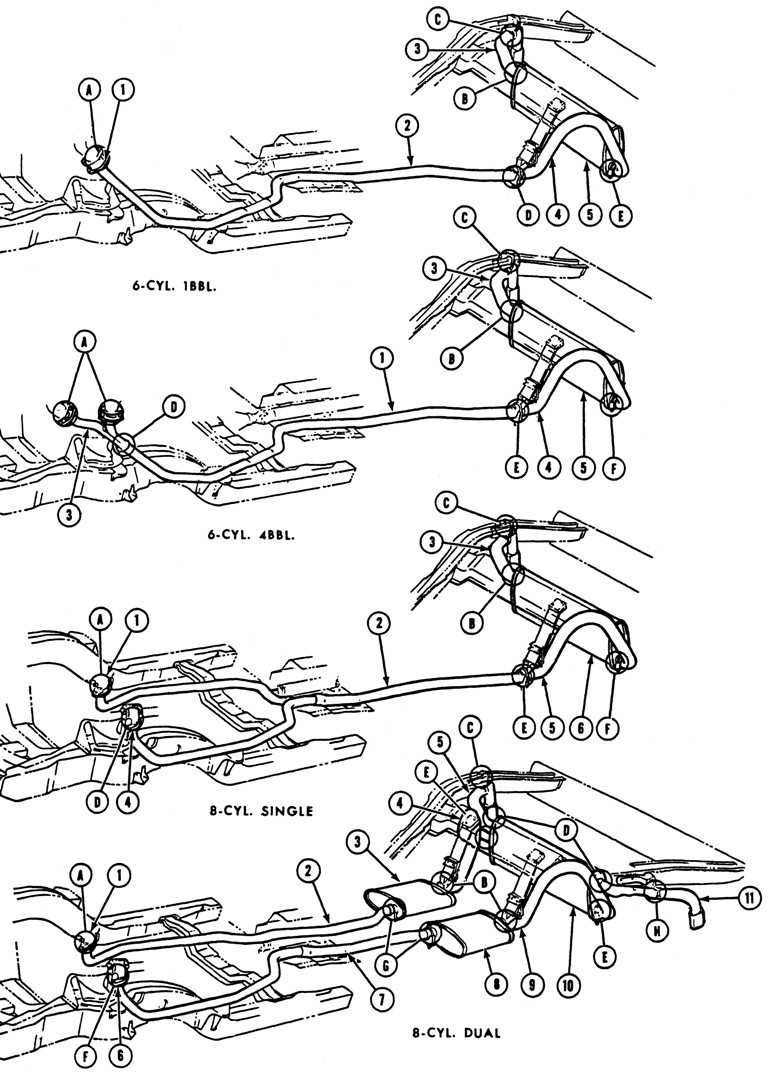

1969 Firebird Exhaust Exploded View
EIGHT CYLINDER
SINGLE EXHAUST

1) Flange, Exhaust
pipe

2) Pipe, Exhaust - Front
3) Pipe, Muffler tail
4) Flange, Exhaust
pipe

5) Pipe, Exhaust
- Rear

6) Muffler, Exhaust
A) Bolt, Flange to manifold
(2 ea.)
Bolt, Flange to manifold
(2 ea.)
B) Clamp pkg.,
Muffler to
tail pipe C) Support, Tail pipe
D) Stud, Manifold to flange (2 ea.)
Nut, Stud to manifold & flange (2 ea.)
Bolt, Flange to manifold
(2 ea.)
E) Support assy.,
Exhaust pipe
Clamp pkg., Front to rear pipe
Clamp pkg., Exhaust pipe to support Bracket, Exhaust pipe
support - upper
Bracket, Exhaust pipe support - lower Bolt, Upper to lower bracket (2 ea.)
Nut, Bolt to upper & lower bracket (2 ea.) F) Clamp pkg., Muffler to
rear exh. Pipe
EIGHT CYLINDER
DUAL EXHAUST

1) Flange,
Exhaust pipe - R.H.
- 400 H0 or Ramair
Flange, Exhaust pipe - R.H. - exc. Ramair or 400
2) Pipe, Exhaust - Front - R.H. - 400 HO or Ramair
Pipe, Exhaust - front - R.H. - exc. Ramair or 400 3) Resonator, Exhaust - R.H. 4) Pipe, Exhaust - Rear - R.H.
5) Pipe, Muffler -
Tail - R.H. Flange,
Exhaust Pipe -
L.H. - 400 HO or Ramair
Flange, Exhaust Pipe - L.H. - exc. Ramair or 400 HO 7) Pipe, Exhaust - Front - L.H. - 400 HO or Ramair
Pipe, Exhaust - Front - L.H. - exc. Ramair or 400 HO
8) Resonator, Exhaust - L.H.
9) Pipe, Exhaust - Rear - L.H.
10) Muffler,
Exhaust

11) Pipe, Muffler Tail - L.H. A) Bolt, Flange to manifold -
Ramair (2 ea.)
Bolt, Flange to manifold -
exc. Ramair (2 ea.)
B) Hanger assy., Rear Exh.
pipe to resonator (2 ea.)
C) Support, Tail pipe - R.H.
D) Clamp pkg., Muffler to tail pipe
E) Clamp pkg.,
Muffler to rear exh.
Pipe
F) Bolt, Flange to manifold -
Ramair (2 ea.)
Stud, Flange to manifold -
exc. Ramair (2 ea.)
Nut, Stud to Manifold -
exc. Ramair (2 ea.)
G) Clamp pkg., Exhaust pipe to resonator
H) Support, Tail pipe - L.H.



The illustrated parts break down illustrates individual part placement in the assembly.
