Firebird Disc Brake System

1969



Illustrated Parts Break Down

1) Pipe, Front brake - R.H.

2) Pipe, Front brake - L.H.

3) Bracket, Brake pipe dist. & switch

4) Distributor & Switch assy., Brake pipe

5) Cylinder assy., Brake master

6) Pipe, Master cyl. to brake pressure reg. valve

7) Bracket, Front brake metering valve

8) Cylinder assy., Brake vacuum

9) Pipe, Rear brake - intermediate

10) Pipe, Rear brake - front

11) Pipe, Master cyl. to dist. & switch - rear

12) Valve, Front brake metering

13) Pipe, Front brake metering valve to dist. & switch

14) Valve, Rear brake pressure regulator

15) Screw, Valve to frame (5/16"-18 x 9/16")

16) Hose assy., Front brake

17) Washer, Connector & brake Hose (Copper)

18) Bolt, Front brake hose (7/16"-20 x 1 3/32")

19) Bolt, Front brake housing retainer

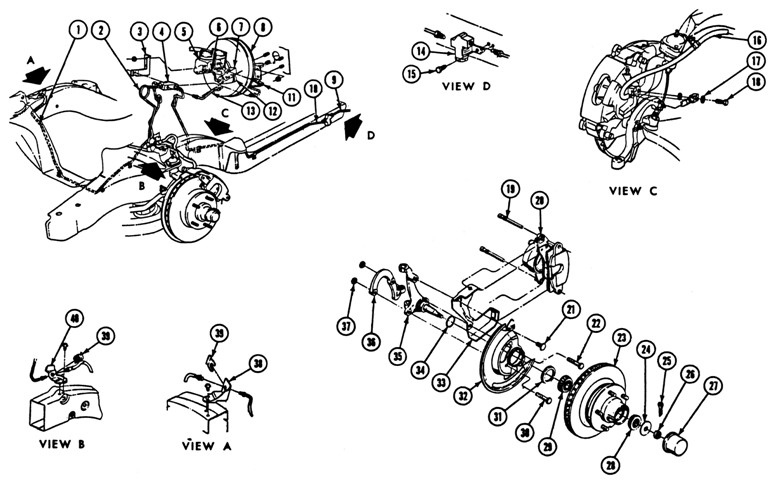

1969 Firebird Disc Brake System Exploded View

20) Caliper assy., Front disc brake

21) Bolt, Splash shield & bracket to Knuckle (5/16"-18 x 7/8")

22) Bolt, Front broke to strg. knuckle (1/2"-20 x 2 21/32")

23) Hub & Disc assy., Front wheel

24) Washer, Steering knuckle spindle

25) Cotter Pin, Steering knuckle spindle (1/8" x 1")

26) Nut, Steering knuckle spindle (3/4"-20)

27) Cap, Front wheel hub - inner

28) Bearing assy., Front wheel - outer

29) Bearing assy., Front wheel - inner

30) Bolt, Front brake to strg. knuckle (1/2"-20 x2 5/32")

31) Seal assy., Front wheel hub - oil

32) Shield assy., Front disc brake splash

33) Bracket, Front disc brake mounting

34) Gasket, Front broke supt. to knuckle

35) Knuckle, Steering

36) Arm, Steering knuckle

37) Nut, Shield to arm (1/2"-20 -300M)

38) Bracket, Front brake hose frame - R.H

39) Retainer, brake hose to supt. bracket

40) Bracket, Front brake hose frame - L.H



The exploded view illustrates individual part placement in the assembly.
