Firebird Brake System

1969

Illustrated Parts Break Down

1) Clevis, Master
cyl. Push rod

2) Bracket assy., Brake pedal
3) Nut, Brake pedal pivot bolt (7/16"-14)
4) Clip, Stop light switch to bracket
5) Switch assy.,
Stop light

6) Nut, Bracket to inst. panel support
(3/8"-16 flat)
7) Bushing, Brake pedal shaft
8) Retainer, Master cyl. clevis to pedal
9) Pad, Brake
pedal

10) Arm assy., Brake pedal
11) Pin, Master cyl, clevis to pedal
12) Spacer, Brake pedal
13) Bolt, Brake
pedal pivot
(7/16"-14 x 4-1/2")

14) Pipe, Front brake - L.H
15) Bracket, Front brake hose frame
16) Retainer, Brake hose to frame bracket

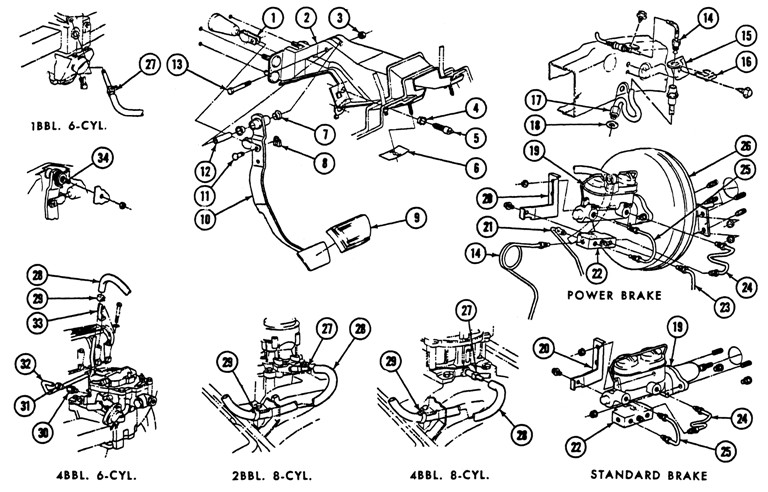

1969 Firebird Brake System Exploded View
17) Hose, Front
brake

18) Washer, Pipe Conn.& front hose
19) Cylinder assy., Brake master
20) Bracket, Brake pipe dist. & Switch
21) Pipe, Front brake - R.H
22) Distributor &
Switch, Brake pipe

23) Pipe, Rear brake - front
24) Pipe, Master cyl, to dist. & Switch - Rear.
25) Pipe, Master cyl, to dist. & Switch - Front
26) Cylinder assy., Vacuum & master
27) Fitting, Trans.
to carb, vacuum
pipe

28) Hose, Vac. Cyl. To carb. Fitting
29) Clamp, Exhaust hose
30) Fitting, Vacuum pipe carb.

31) Fitting, Pipe to
Carb.- threaded
sleeve
(3/8" Tubing) 32) Pipe, Vacuum hose to carb. (3/8" OD Steel)
33) Bracket, Vacuum pipe
34) Spring, Brake pedal return (w/Cruise Control)


The illustrated parts break down illustrates individual part placement in the assembly.
