Firebird Accelerator Linkage

1969

Illustrated Parts Break Down

1) Nut, Carb. throttle lever ext. to throttle lever (#10-24)

2) Lockwasher, Carb. Throttle lever ext. bolt (#10 med.)

3) Clip, Carb. to accelerator control lever rod lower

4) Spring, Throttle control return (6 cyl. 1 Bbl.)

5) Anchor, Throttle control return spring (6 cyl. 1Bbl.)

6) Bracket, Idle stop solenoid mtg. (6 cyl. 1 Bbl. M.T.)

7) Bolt, Idle stop solenoid to mtg. bracket (1/4"-20 x 5/8")

8) Screw, Idle stop solenoid bracket to carb. (#10-24 x 3/8")

9) Solenoid, Idle stop

10) Nut, Idle stop solenoid to mtg. bracket (1/4"-20)

11) Bolt, Throttle cable control mtg. bracket (5/16"-18 x 5/8")

12) Bracket, Throttle control cable mtg. (6 cyl. 1 Bbl.)

13) Bracket, Downshift cable mtg. (w/M-38 trans.)

14) Cable assy., Downshift control (w/M-38 trans.)

15) Clamp, Throttle control cable retainer

16) Screw, Throttle control cable bracket clamp (1/4" -20 x 5/8" hex.)

17) Screw, Carb. Throttle lever ext. to carb. (#10-24 x 1/2" hex.)

18) Extension, Carb. Throttle lever (6 cyl. 1 bbl, MT)

19) Lever, Downshift cable throttle control (w/M-38 trans.)

20) Insert, Downshift control lever (w/M-38 trans.)

21) Washer, Downshift cable to lever (1/8" x 1/2" x 1/32")

22) Retainer, Downshift cable to throttle lever

23) Washer, Throttle control idler lever (25/64" l d. x 3/4" O.D.)

24) Cotter Pin, Throttle control idler lever to control lever (3/32" x 3/4")

25) Lever & Pin assy., Throttle control idler (6 cyl. 1 Bbl. MT)

26) Cotter pin, Throttle control cable to control lever (1/16" x 1/2")

27) Washer, Throttle control cable to control lever (13/64" x 13/32" x 3/64")

28) Stud, Accelerator control idler lever

29) Rod, Carb. To accelerator control lever (6 cyl.)

30) Cable assy., Throttle control

31) Screw assy., Throttle control cable to dash (1/4"-14 x 3/4")

32) Gasket, Throttle control lever to dash

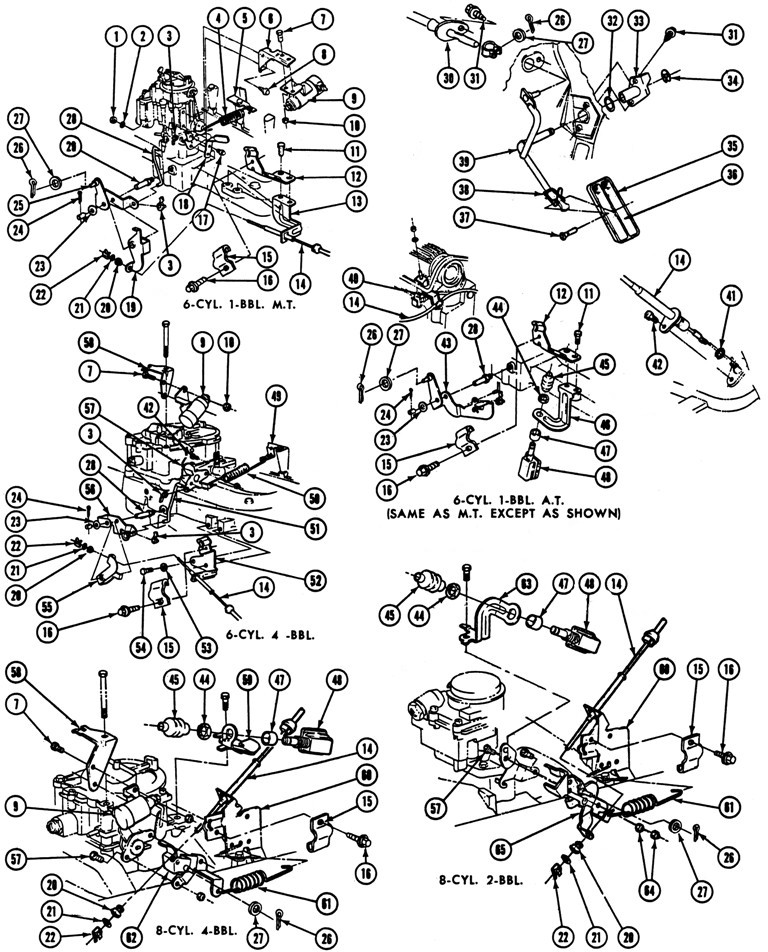

1969 Firebird Accelerator Linkage Exploded View

33) Support, Accelerator pedal rod

34) Retainer, Pedal rod to support & dash (5/16")

35) Plate, Accelerator trim

36) Pedal assy., Accelerator

37) Pin, Accelerator pedal rod clevis

38) Spring, Accelerator pedal tension to control rod

39) Rod assy., Accelerator pedal

40) Clip, Trans. downshift cable to rocker arm cover

41) Seal, Downshift cable to trans. ("o" ring)

42) Bolt, Downshift cable to trans. case - attach. (1/4"-20 x 1/2")

43) Lever assy., Throttle control idler (6 cyl. 1- bbl- A.T.)

44) Nut, Downshift switch & spacer to bracket

45) Boot, Downshift switch

46) Bracket, Downshift switch mtg. (6 cyl. 1 Bbl. A.T.)

47) Spacer, Downshift switch mounting

48) Switch assy., Downshift control

49) Anchor, Throttle control return spring (6 cyl. 4 bbl.)

50) Spring, Throttle control return (6 cyl. 4 Bbl.)

51) Rod, Carb. To idler lever (6 cyl. 4 bbl.)

52) Bracket, Downshift cable to manifold (6 cyl. 4 Bbl.)

53) Lockwasher, control cable mtg. brkt. bolt (5/16" std.)

54) Bolt, Control cable mtg. bracket to manifold (5/16" x 18 x 3/4")

55) Lever, Downshift cable throttle control

56) Lever, Throttle control idler (6 cyl. 4 Bbl. MT)

57) Extension, Carb. lever (6 cyl. 4 bbl.)

58) Bracket, Idle stop solenoid mtg. (6 cyl. 4 bbl. 8 cyl. 4 Bbl.)

59) Bracket, Downshift switch mounting (8 cyl. 4 Bbl.)

60) Bracket, Downshift cable mtg. (6 cyl. 2 Bbl.)

61) Spring, Throttle control return (8 cyl.)

62) Extension assy., Carb. Lever (6 cyl. 4 Bbl.)

63) Bracket, Downshift switch mounting (8 cyl. 2 Bbl.)

64) Nut, Idle stop solenoid to mtg. brkt. (1/4"-20)

65) Extension assy., Carb. Lever (8 cyl. 2 Bbl.)



The exploded view illustrates individual part placement in the assembly.
