Pontiac All Hydra-Matic Transmissions
Column Lower Gearshift Controls

1969-72

Illustrated Parts Break Down

1) Retainer,
Gearshift control
rod to shifter tube
lever

2) Washer, Gearshift control rod to shifter tube lever (5/16" x 3/4" x 1/32")
3) Bushing,
Gearshift control
rod to shifter tube
lever

4) Sleeve, Gearshift
control rod to shifter
tube lever

5) Rod, Gearshift
control
6) Bushing,
Equalizer shaft
pivot

7) Washer,
Equalizer shaft
bushing

8) Spring, Equalizer shaft anti-rattle
9) Screw, Gearshift
control rod to cross
shaft
(5/16"-18 x 7/16")

10) Lever assy., Gearshift control cross shaft

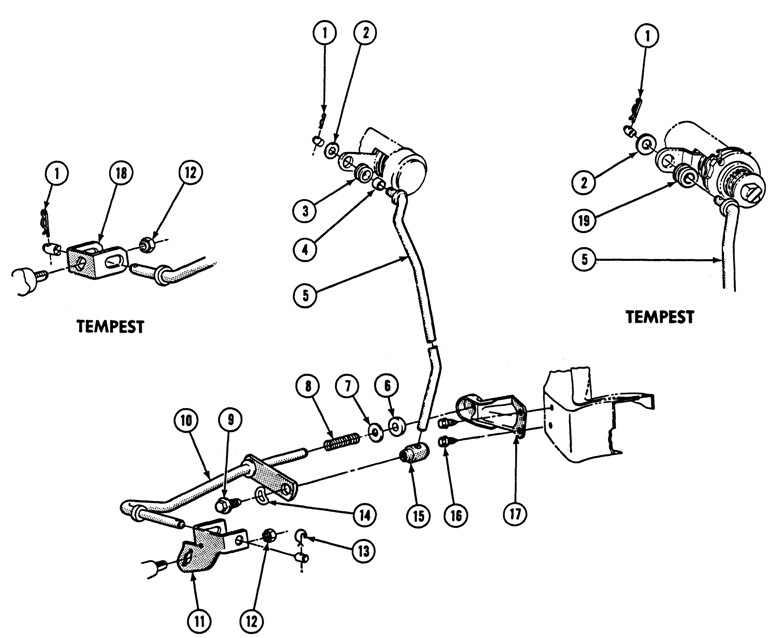

1969-72 Pontiac Column Lower Gearshift Controls Exploded View
11) Lever, Range
selector - outer

12) Nut, Trans. range selector lever (3/8"-16 Hex.)
13) Retainer, Equalizer to trans. lever
14) Washer, Control
rod to equalizer
shaft
(3/8" x 7/8")

15) Clamp, Control swivel at trans.
16) Screw,
Equalizer bracket
to frame
(5/16"-18 x 3/4")

17) Bracket, Equalizer shaft mounting

18) Lever, Trans.
range
selector - outer

19) Bushing, Gearshift control rod to shifter tube lever


The illustrated parts break down illustrates individual part placement in the assembly.
