Upper Gearshift Levers

1969-72

Illustrated Parts Break Down

FIREBIRD, TEMPEST & PONTIAC MANUAL

1) Pin, Gearshift upper lever pivot (7/32" x 15/16")

2) Lever assy., Gearshift control upper

3) Cover & Screw assy., Strg. column lock plate

4) Screw, Direction signal control lever to switch(#8-18 x 3/4")

5) Lever assy., Direction signal control



FIREBIRD, TEMPEST & GRAND PRIX AUTOMATIC & HYDRA-MATIC

1) Spring, Gearshift indicator lens retainer

2) Indicator assy., Gearshift

3) Bracket, Gearshift indicator lens retainer

4) Lever assy., Gearshift control - upper

5) Cover & Screw assy., Strg. Column lock plate

6) Screw , Direction signal control lever to switch(#8-18 x 3/4")

7) Lever assy., Direction signal control

8) Bulb, Gearshift indicator lamp (#1893)

9) Cap, Gearshift indicator lens lamp

10) Pin, Gearshift upper lever pivot (7/32" x 15/16)

11) Cap, Lever hsg. pointer (1970-72)

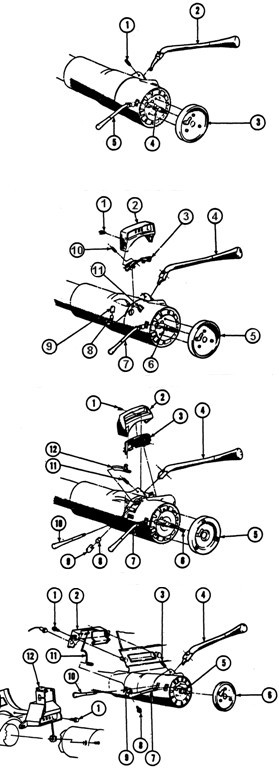

1969-72 Pontiac Upper Gearshift Levers Exploded View

FIREBIRD, TEMPEST & GRAND PRIX AUTOMATIC & HYDRA-MATIC -w/TILT WHEEL

1) Clip, Gearshift indicator lens to retainer

2) Retainer, Gearshift indicator lens

3) Lens, Gearshift indicator

4) Lever assy., Gearshift control - upper

5) Cover & Screw assy., Strg. Column lock plate

6) Screw, Direction signal control lever to switch

7) Lever assy., Direction signal control

8) Bulb, Gearshift indicator

9) Cap, Gearshift indicator lens lamp

10) Lever assy., Tilt wheel release

11) Pin, Gearshift upper lever pivot (7/32" x 15/16")

12) Pointer, Gearshift indicator

PONTIAC HYDRA-MATIC& TILT WHEEL

1) Screw, Gearshift indicator assy. to trim plate(#8-18 x 5/8)

2) Indicator assy., Gearshift

3) Pin, Gearshift upper lever pivot (7/32"x 15/16")

4) Lever assy., Gearshift control - upper

5) Screw, Direction signal control lever to switch(#5-18 x 3/4")

6) Cover & Screw assy., Strg. Column lock plate

7) Lever assy., Direction signal control

8) Screw, Gearshift ind. pointer to shift bowl shroud (#8-18 x 1/2)

9) Nut, Gearshift Ind. pointer to shift bowl shroud(#8-18 U-shape)

10) Lever assy., Tilt wheel release

11) Pointer, Gearshift indicator

12) Housing, Gearshift shift indicator (1971-72)



The exploded view illustrates individual part placement in the assembly.
