Firebird Convertible L.H. Exterior View

1968

Illustrated Parts Break Down

1) Fender, Front

2) Panel, Hood

3) Ornament, Hood
top vent

4) Molding,
Windshield reveal
- lower

5) Emblem, Hood
side "400"

6) Glass,
Windshield
7) Blade,
Windshield wiper

8) Mirror, Rear
view - inside

9) Arm,
Windshield wiper

10) Panel, Cowl
top vent louver

11) Molding,
Windshield header
- center
12) Molding,
Windshield
reveal - side

13) Molding,
Windshield pillar
finish

14) Mirror, Rear
view - outside

15) Boot assy.,
Folding top dust
16) Molding, Rear
quarter pinchweld
finish

17) Panel, Rear
quarter side outer

18) Lens, Rear
quarter side marker
lamp

19) Bumper, Rear

20) Molding pkg.,
Rear wheel opening

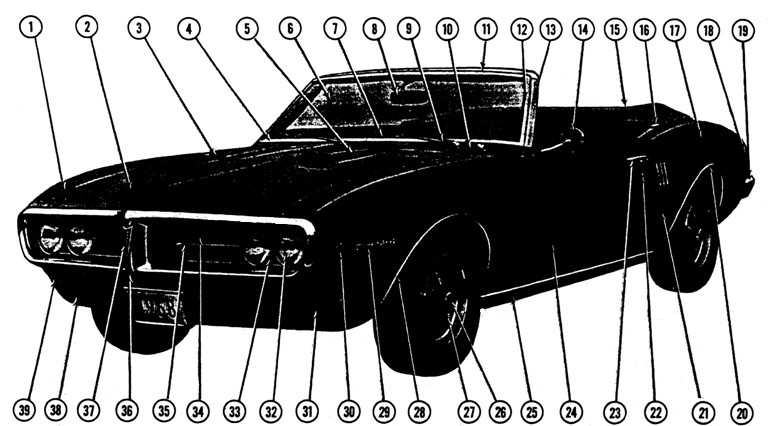

1968 Firebird Convertible L.H. Exterior View Exploded View
21) Molding pkg.,
Rear fender louver

22) Cylinder kit,
Door lock

23) Handle, Door
outside

24) Door assy.,
Front

25) Molding pkg.,
Rocker panel
26) Ornament.,
Rally II wheel

27) Wheel, Rally II

28) Molding pkg.,
Front fender wheel
opening

29) Plate, Front
fender name -
"Firebird"

30) Emblem, Front
fender
31) Extension.,
Front fender

32) Sealed Beam
Unit, Headlamp

33) Escutcheon,
Radiator grille
- plastic

34) Plate, Radiator
grille name -
"Pontiac"

35) Grille, Radiator
36) Bumper, Front

37) Emblem, Front
bumper

38) Panel, Front
bumper valance

39) Lamp assy.,
Parking, signal &
side marker


The illustrated parts break down illustrates individual part placement in the assembly.
