Clutch Linkage

1968-72/68-72"A"/1969-71"G"

Illustrated Parts Break Down

1) Seal, Clutch rod

2) Screw, Seal
to dash
(1/4"-14 x 3/4")

3) Bolt, Clutch
pedal pivot
(7/16"-14 x 4 1/2")

4) Washer, Pedal
pivot bolt
(15/32"ID x
15/16"OD x 1/16")

5)  Bumper, Clutch
pedal overtravel
stop

6) Screw, Stop
bracket to
mounting bracket
(1/4"-14 x 3/4")
7) Bracket, Clutch
pedal overtravel
stop

8) Spacer, Clutch
pedal

9) Bushing, Clutch
pedal shaft (nylon)

10) Nut, Clutch
pedal pivot bolt
(7/16"-14)

11) Bushing, Clutch
pedal push rod
(5/16" ID- nylon)
12) Bumper, Clutch
pedal stop

13) Clip, Clutch
pedal rods

14) Arm, Clutch

15) Pad, Clutch
pedal

16) Plate, Clutch
pedal pad trim

17) Pin, Link to
countershaft &
level

18) Level, Clutch
control release
19) Fork, Clutch
release

20) Spring, Push
rod anti-rattle

21) Cotter pin, Link
to hub & pin
(1/8" x 1")

22) Rod, Clutch fork
push

23) Nut, Push rod
adjusting (3/8"-16)

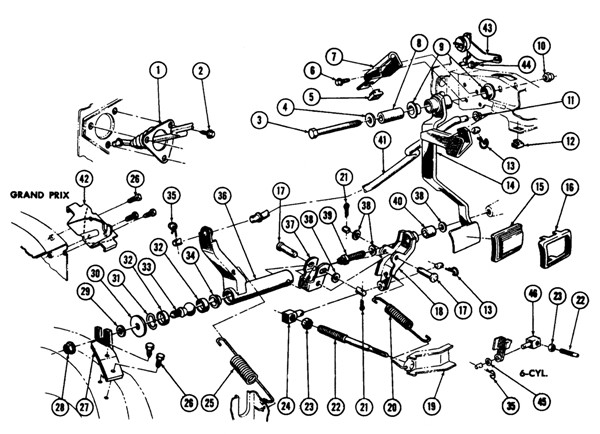

1968-72 Pontiac Clutch Linkage Exploded View
24) Swivel, Clutch
fork push rod

25) Spring, Clutch
linkage return

26) Screw, Bracket
to frame
(5/16"-18 x 3/4")

27) Bracket, Clutch
lever/shaft

28) Nut, Stud to
frame bracket

29) Washer, Ball
stud to frame
(.390 ID x
.750 OD x .076)

30) Seal, Clutch
control countershaft
31) Spring, Clutch
lever shaft
ball stud seat
retainer

32) Seat, Clutch
lever shaft ball
stud

33) Stud, Clutch
lever shaft ball
(3/8"-16)

34) Cup,
Countershaft grease
retainer

35) Retainer,
Push rod to
countershaft

36) Countershaft,
Clutch control
37) Link, clutch
control
countershaft

38) Washer,
Countershaft link
to lever/hub
(17/32 ID x
7/8" OD x 1/16")

39) Bolt,
Countershaft
lever/hub assy
(1/2"-13 x
1 1/2"-12)

40) Bearing,
Countershaft lever
41) Rod, Clutch
pedal push

42) Bracket, Clutch
lever/shaft

43) Switch/bracket
assy,Tranny
neutral (1969-72)

44) Screw, Switch
to bracket
(1/4"-14 x 1/2")

45) Washer, Swivel
to level/hub (6cyl)
(11/32"ID x
1 1/8"OD)

46) Swivel, Clutch
fork push rod (6cyl)


The illustrated parts break down illustrates individual part placement in the assembly.
