Firebird 8 Cyl. 4 Barrel Rochester

1968-69

Illustrated Parts Break Down

1) Carburetor assy.,
Rochester 4-Bbl.

2) Bolt, Carb. To manifold
(5/16"-18 x 3 5/8")
3) Nut, Carb. to manifold (5/16"-24)
4) Cap, Vacuum stud
5) Bolt, Carb. To
manifold
(5/16"-18 x 1")

6) Plug, Carb. Vacuum hole (1/8")
7) Clip, Choke rod to carb
8) Rod, Choke
Themo lever to
carb. Choke lever
9) Screw assy,, Choke to manifold
(1/4"-20 x 5/16")
10) Thermostat., Automatic choke
11) Stud, Carb. To
manifold
(5/16"-18 x 2 1/8"- Hollow)
12) Gasket, Carb. to manifold
13) Baffle, Carb. to manifold gasket (1967)

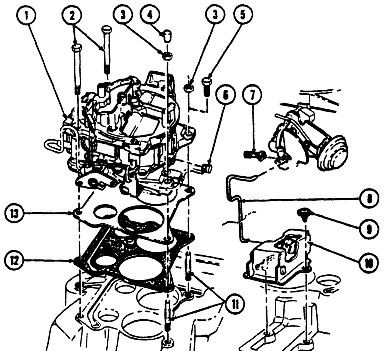

1968-69 Firebird 8 Cyl. 4 Barrel Rochester Exploded View



The illustrated parts break down illustrates individual part placement in the assembly.
