Firebird Custom Interior

1968-69

Illustrated Parts Break Down

1) Pad assy.,
Instrument panel

2) Molding,
Windshield side
garnish (Pad)

3) Lace,
Windshield upper
trim finishing

4) Sunshade assy.,
Trimmed

5) Support,
Sunshade

6) Molding, Side
roof rail

7) Plate, Front
door pull handle
finish
8) Lace, Body lock
pillar trim finish

9) Trim assy.,
Headlining

10) Hook, Coat

11) Tray, Rear
quarter arm rest
ash

12) Trim assy.,
Rear quarter

13) Trim, Rear
quarter upper-
above belt

14) Filler, Seat
back to quarter
panel
15) Lace, Back
window upper &
side trim

16) Escutcheon,
Back window
upper lace

17) Escutcheon,
Back window
lower corner
garnish molding

18) Foundation &
Trim assy.,
Rear compartment
shelf

19) Cover, Rear
seat back

20) Back, Rear seat
21) Link, Rear
seat folding back

22) Cover, Rear
seat cushion

23) Cushion, Rear
seat

24) Carpet, Rear
floor

25) Arm rest, Rear
quarter-complete

26) Trim, Body
lock pillar
finish-lower

27) Molding, Front
door trim pad-
lower

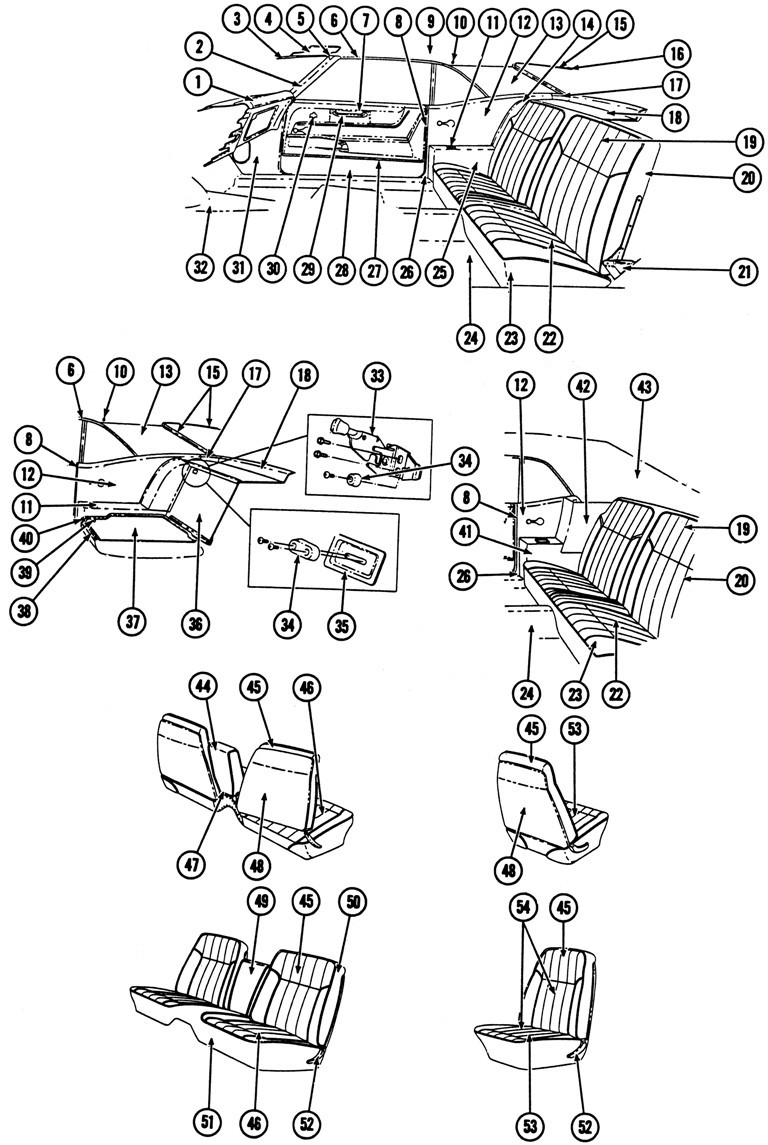

1968-69 Firebird Custom Interior Exploded View
28) Trim pad assy.,
Front door

29) Handle, Front
door pull

30) Emblem, Front
door trim pad

31) Panel, Shroud
side trim-plastic

32) Carpet, Front
floor

33) Lock, Folding
rear seat back

34) Bumper, Rear
seat folding
back

35) Cover, Rear
seat folding back
retainer finishing
36) Foundation,
Rear
compartment-front

37) Panel, Rear
seat folding back

38) Molding, Rear
seat folding back
trim finish- upper

39) Striker, Rear
seat back lock

40) Cap, Rear
seat back upper
corner finishing

41) Trim, Rear
quarter arm rest

42) Trim, Top
comportment
side trim
panel-upper
43) Trim, Folding
top cover

44) Arm rest, Front
seat center

45) Cover, Driver
and passenger
seat back

46) Cover, Front
seat cushion

47) Cover, Front
seat center arm
rest trim panel
finish

48) Panel, Front
seat back

49) Cover, Front
seat back center
arm rest
50) Back, Driver
and passenger
seat

51) Cushion, Front
seat

52) Cover, Seat
back outer arm

53) Cover, Driver
and passenger
seat cushion

54) Seat, Driver
and passenger
complete


The illustrated parts break down illustrates individual part placement in the assembly.
