Firebird Console

1968-69

Illustrated Parts Break Down

1) Harness assy.,
Console

2) Bulb, Trans. Control indicator (#1445) 3) Bracket, Console Compt
4) Nut, Console Compt box to brkt (8-18 "U" Shape)
5) Nut, Console
Compt. brkt. to
floor

6) Screw, Console
Compt. box to brkt.
(8-18 x 5/8"
Oval Hd.)

7) Console,
Transmission floor

8) Molding,
Console Top
9) Seal, Shift
lever

10) Bracket,
Console gearshift
opening escutcheon

11) Bolt, Escutcheon
shift hsg. mtg. brkt,
to shift assy.
(1/4"-20 x 3/8")

12) Housing assy.,
Console gearshift
 indicator
13) Spacer,
Appliqué to
console frame

14) Insert, Console
Front-A.T.

15) Seal,
Escutcheon
to lens (Side)

16) Seal,
Escutcheon
to lens
(Front)

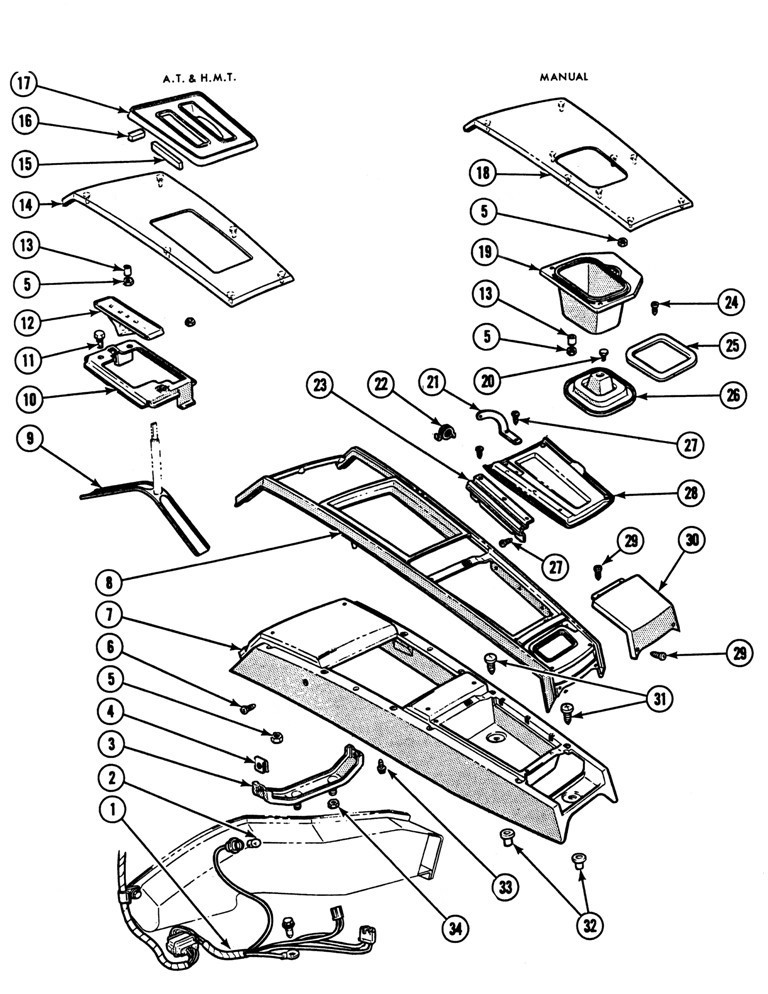

1968-69 Firebird Console Exploded View
17) Escutcheon,
Console gearshift
opening

18) Insert,
Console Front-MT.

19) Escutcheon, Console gearshift opening 20) Screw, Shift lever seal retainer to tunnel (8-1B x 7/8)
21) Arm, Console Compt. door spring
22) Spring,
Console Compt.
Door

23) Hinge assy.,
Console  Compt.
Door

24) Screw, Control
lever trim plate to
tunnel
(8-18 x 7/8")

25) Plate, Control
Lever Trim

26) Seal, Trans.
Control Lever
27) Screw, Shift
Lever Seal
retainer to tunnel
(8-18 x 7/8")

28) Door, Console
Compt

29) Screw, Rear
appliqué to console
(8-18 x 1/2")

30) Insert,
Console-Rear

31) Screw,
Console to floor
(5/16"-18 x 3/4"
Pan HD)
32) Nut,
Console to floor
(5/16"-18 Tubular)

33) Screw,
Console frame to
console
(8-32 x 1/2" Hex.
HD)

34) Nut,
Console mtg. brkt.
 To floor (3/8"-16)

Not shown:
**  Bumper,
Console door


The illustrated parts break down illustrates individual part placement in the assembly.
