Tempest & Firebrd 6-cyl. Engine A.T.
Oil Cooler, Oil Filler & Vacuum Pipes

1968-69

Illustrated Parts Break Down

1) Hose, Pipe
to carb. (7/32" I.D.
x 1 5/16")
(1968)

2) Pipe, Carb. to trans. vacuum
3) Nut, Threaded
sleeve
(1/4" Tubing - 7/16"-24) 4) Fitting, Vacuum pipe to intake manifold
5) Indicator rod,
Trans. oil level

6) Pipe assy., Oil cooler - outlet (7/32" ID. x 1 5/16"
)
7) Pipe assy., Oil
cooler - inlet

8) Screw, Pipe clip to frame (5/16"-18 x 3/4")

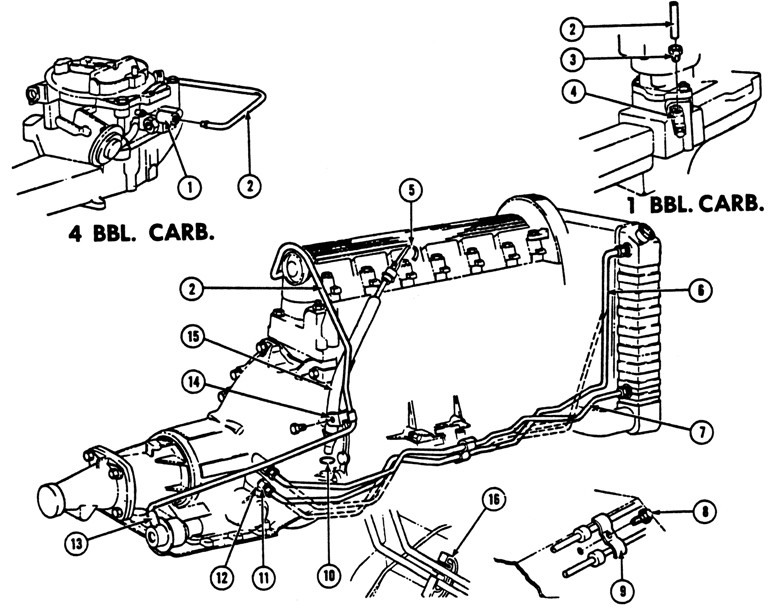

1968-69 Tempest & Firebrd 6-cyl. Oil Cooler, Oil Filler & Vacuum Pipes Exploded View
9) Clip, Oil cooler
pipe

10) Seal, Oil filler pipe to Case
11) Connector, Oil
cooler pipes to
case

12) Washer, Cooler lines to connector - copper
13) Hose, Vacuum
line to modulator

14) Clip, Vacuum pipe to flywheel housing
15) Pipe assy.,
 Oil filler

16) Spacer, Cooler pipes to frame


The illustrated parts break down illustrates individual part placement in the assembly.
