Firebird Air Cleaner 6 Cyl. 4 Bar.

1968-69

Illustrated Parts Break Down

1) Nut, Air cleaner
to carb
(1/4"-20 Wing)

2) Cleaner &
Silencer, Carburetor
air
3) Gasket, Air
cleaner to
carburetor

4) Stud, Air Cleaner Assy. To Carburetor
(1/4-20 x 5")
5) Bracket &
Pipe assy.,
Crankcase vent
6) Hose, Crankcase vent to air cleaner
(3/4"ID x 1" OD x 7")
7) Clamp,
Crankcase hose to
air cleaner &
vent pipe

8) Sensor pkg., Air cleaner thermal vacuum

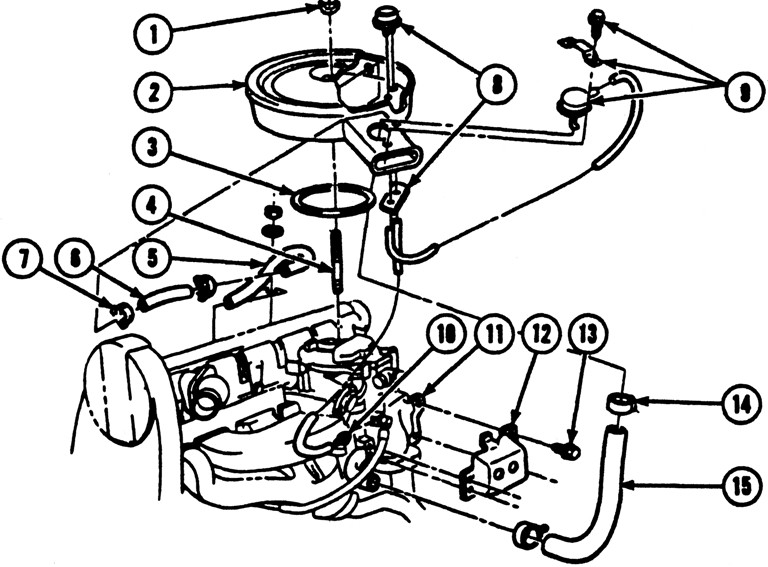

1968-69 Firebird Air Cleaner 6 Cyl. 4 Bar. Exploded View
9) Diaphragm
pkg., Air cleaner
(on snorkel)

10) Fitting, Air
cleaner motor vac.
Hose
11) Shroud, Carb.
Air pre-heater -
inner

12) Shroud, Carb.
Air pre-heater -
outer
13) Screw, Carb.
Air pre-heater
shroud assy. To
Exh. Manifold (#10-16 x 5/8" Hex. HD)
14) Clamp, Air
pre-heater duct

15) Duct, Air pre-heater shroud to Air Cleaner


The illustrated parts break down illustrates individual part placement in the assembly.
