Firebird Air Cleaner 6 Cyl. 1 Bar.

1968-69

Illustrated Parts Break Down

1) Nut, Air cleaner
to carb.
(1/4"-20 Wing)

2) Cleaner&
Silencer, Carburetor
air
3) Gasket, Air
cleaner to
carburetor

4) Bracket & Pipe assy., Crankcase vent
5) Hose, Crankcase
vent to air
cleaner
(3/4"I.D. x 1" OD x 7")
6) Clamp, Crankcasehose to air cleaner & vent pipe
7) Sensor pkg.,
Air cleaner thermal
vacuum

8) Diaphragm pkg., Air cleaner (On Snorkel)

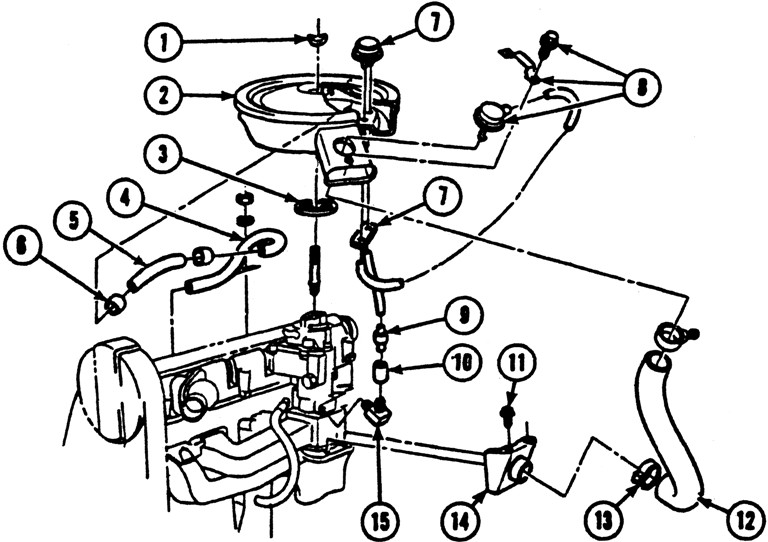

1968-69 Firebird Air Cleaner 6 Cyl. 1 Bar. Exploded View
9) Valve assy.,
Air cleaner motor
vacuum check

10) Hose, Check valve to elbow (1-1/4" long)
11) Screw,
Pre-Heater
shroud to mtg. brkt.
(#10-16 x 5/8" Hex.)
12) Duct, Carb. Air pre-heater to air cleaner
13) Clamp,
Pre-heater duct
to shroud-keystone

14) Shroud assy., Carb, Air pre-heater
15) Elbow, Air
cleaner vac. hose
to manifold


The illustrated parts break down illustrates individual part placement in the assembly.
