Firebird Vent Window

1967

Illustrated Parts Break Down

1) Frame, Door
vent

2) Weatherstrip,
Door vent

3) Channel, Door
vent

4) Stud & Cap
assy., Door vent
glass channel
handle

5) Gasket, Door
vent glass channel
handle

6) Insert, Door
vent glass channel
handle
7) Glass, Door vent

8) Washer, Door
vent glass channel
handle - plastic

9) Spacer, Door
vent glass channel
handle

10) Washer, Door
vent glass channel
handle - spring
11) Handle, Door
vent glass channel

12) Pin, Door vent
glass channel
handle
(3/32" x 5/8")
13) Channel &
Scalp assy., vent
division

14) Screw, Vent
division channel to
frame

15) Rivet, Vent
division channel to
support

16) Channel, Door
window glass run -
front

17) Rivet, Division
channel to glass run
channel
18) Washer, Vent
friction unit tab

19) Spring, Vent
friction unit

20) Stop, Vent
friction unit

21) Washer, Vent
friction unit

22) Washer, Vent
spring retainer

23) Screw, Vent
support to frame

24) Support,
Division channel
(part of vent assy)

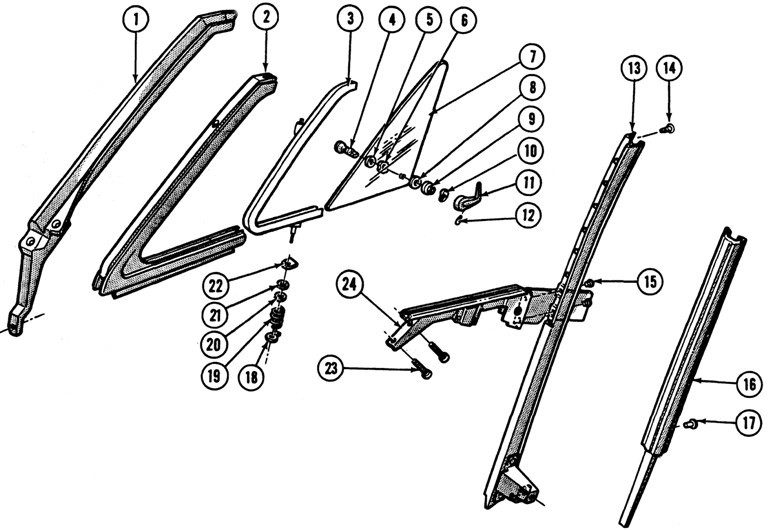

1967 Firebird Vent Window Exploded View



The illustrated parts break down illustrates individual part placement in the assembly.
