Firebird Standard Interior

1967

Illustrated Parts Break Down

1) Cover,
Instrument Panel

2) Lace,
Windshield Upper
trim finishing

3) Molding,
Windshield side
garnish

4) Sunshade assy.,
 Trimmed

5) Support,
Sunshade

6) Trim assy.,
Headlining
7) Plate, Front
door trim pad
name

8) Lace, Pinchweld
finish & body lock
pillar (Bulk Roll)

9) Lace, Body lock
pillar - at belt
(Formed)

10) Hook, Coat

11) Molding, Rear
quarter trim pad

12) Trim, Rear
quarter
13) Trim, Rear
quarter upper -
above belt

14) Filler, Seat
back to quarter
panel

15) Lace, Back
window upper
& side trim

16) Escutcheon,
Back window
upper lace

17) Escutcheon,
Back window lower
corner garnish
molding
18) Foundation &
Trim, Rear
compartment shelf

19) Cover, Rear
seat back

20) Link, Rear
seat folding back

21) Cover, Rear
seat cushion

22) Carpet, Rear
floor

23) Arm rest,
Quarter - complete

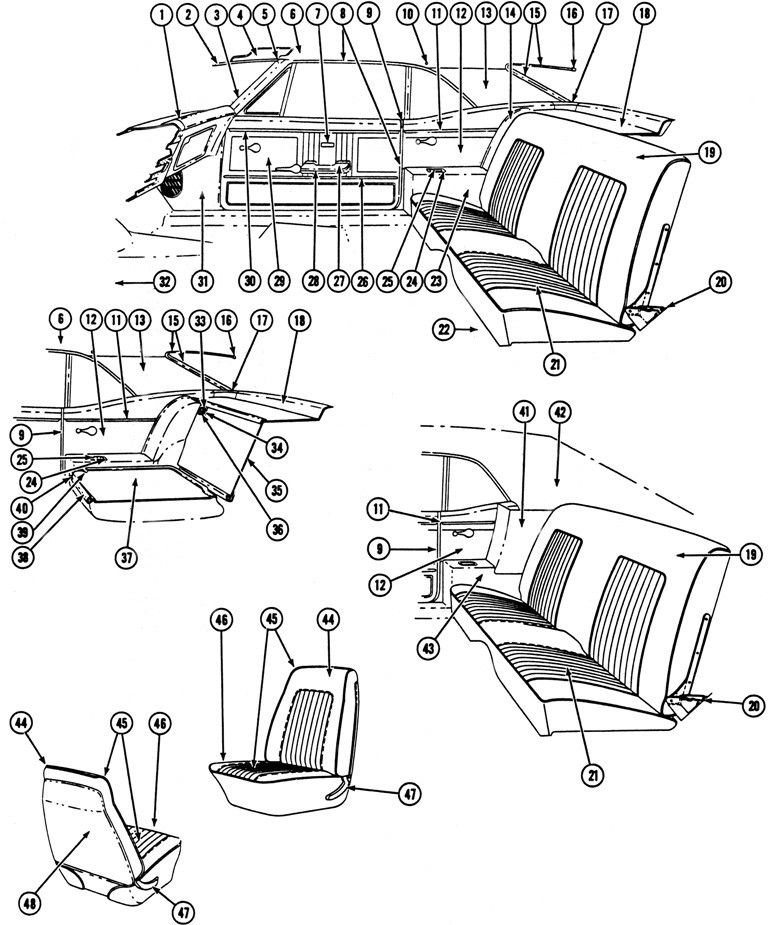

1967 Firebird Standard Interior Exploded View
24) Escutcheon,
Rear quarter arm,
rest ash Tray

25) Ash tray,
Rear quarter arm
rest

26) Molding, Front
door trim pad -
lower

27) Cover, Front
door arm rest

28) Base, Front
door arm rest

29) Trim Pad, Front
door

30) Molding, Front
door trim pad -
upper
31) Panel, Shroud
side trim - plastic

32) Carpet, Front
floor

33) Retainer, Rear
seat folding back
striker

34) Cover, Rear
seat folding back
retainer finishing

35) Foundation,
Rear
compartment -
front

36) Bumper, Rear
seat folding back
37) Panel, Rear
seat folding back

38) Molding, Rear
seat folding back
trim finishing

39) Striker, Rear
seat folding back
retainer

40) Cap, Rear
seat back upper
corner finishing

41) Trim, Top
compartment
side trim panel -
upper

42) Trim, Folding
top roof
43) Trim, Rear
quarter arm rest

44) Cover, Driver
& passenger
seat back

45) Seat, Driver
& Passenger -
complete

46) Cover, Driver
seat cushion

47) Cover, Seat
back outer Arm

48) Panel, Driver
& Passenger seat
back


The illustrated parts break down illustrates individual part placement in the assembly.
