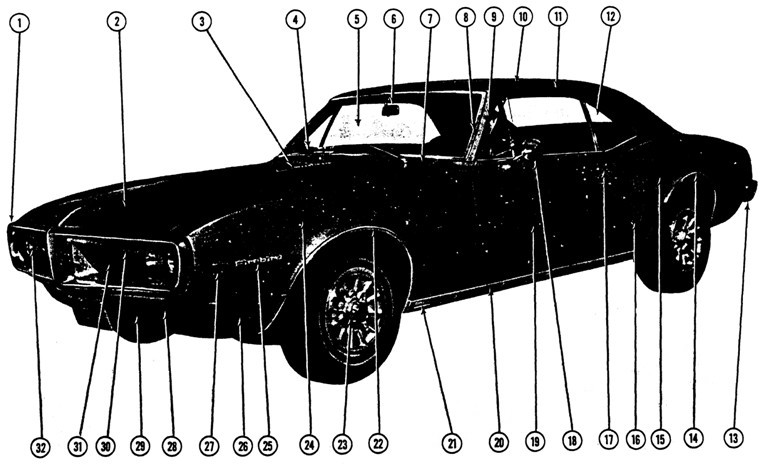

L.H. Firebird Exterior View

1967

Illustrated Parts Break Down

1) Bumper, Front

2) Panel, Hood

3) Emblem, Hood
side

4) Arm, Windshield
wiper

5) Glass, Windshield

6) Mirror, Inside
rear view

7) Panel, Cowl
top vent

8) Molding,
Windshield reveal -
side

9) Molding,
Windshield Pillar
drip
10) Panel, Roof

11) Scalp, Roof
Drip Molding

12) Glass, Rear
quarter window

13) Bumper, Rear

14) Molding pkg.,
Rear Wheel opening

15) Panel, Rear
quarter outer

16) Molding pkg.,
Rear fender ouver

17) Handle, Door
 outside

18) Mirror, Outside
rear view
19) Door assy.,
Front

20) Molding pkg.,
Rocker panel

21) Emblem,
Rocker panel

22) Molding pkg.,
Front fender wheel
opening

23) Ornament,
Wheel disc

24) Fender

25) Plate, Front
fender name
"Firebird"
26) Extension
 assy., Front fender

27) Emblem, Front
fender

28) Lamp assy.,
Parking

29) Panel, Front
bumper valance

30) Plate, Radiator
grille name
"Pontiac"

31) Grille, Radiator

32) Sealed beam
unit,Headlamp-
double filament

1967 L.H. Firebird Exterior View Exploded View



The illustrated parts break down illustrates individual part placement in the assembly.
