Firebird Custom Interior

1967

Illustrated Parts Break Down

1) Cover,
Instrument panel

2) Lace,
Windshield upper
trim finishing

3) Molding.
Windshield garnish
- side

4) Sunshade assy.,
Trimmed

5) Support,
Sunshade

6) Trim assy.,
Headlining

7) Molding, Front
door trim pad -
upper
8) Molding, Side
roof rail (Bright)

9) Cap, Body lock
pillar trim - at belt

10) Molding, Rear
quarter trim pad

11) Hook, Coat

12) Handle, Quarter
window regulator

13) Trim assy.,
Rear quarter upper
- above belt

14) Trim assy.,
Rear quarter
15) Panel, Rear
quarter side inner
- upper

16) Filler, Seat
back to quarter
panel

17) Lace, Back
window upper &
side trim

18) Escutcheon,
Back window upper
lace

19) Escutcheon,
Back window lower
corner garnish
molding
20) Foundation &
Trim, Rear
compartment shelf

21) Cover, Rear
seat back

22) Link, Rear
seat folding
back

23) Cover, Rear
seat cushion

24) Carpet, Rear
floor

25) Arm rest,
Quarter - complete

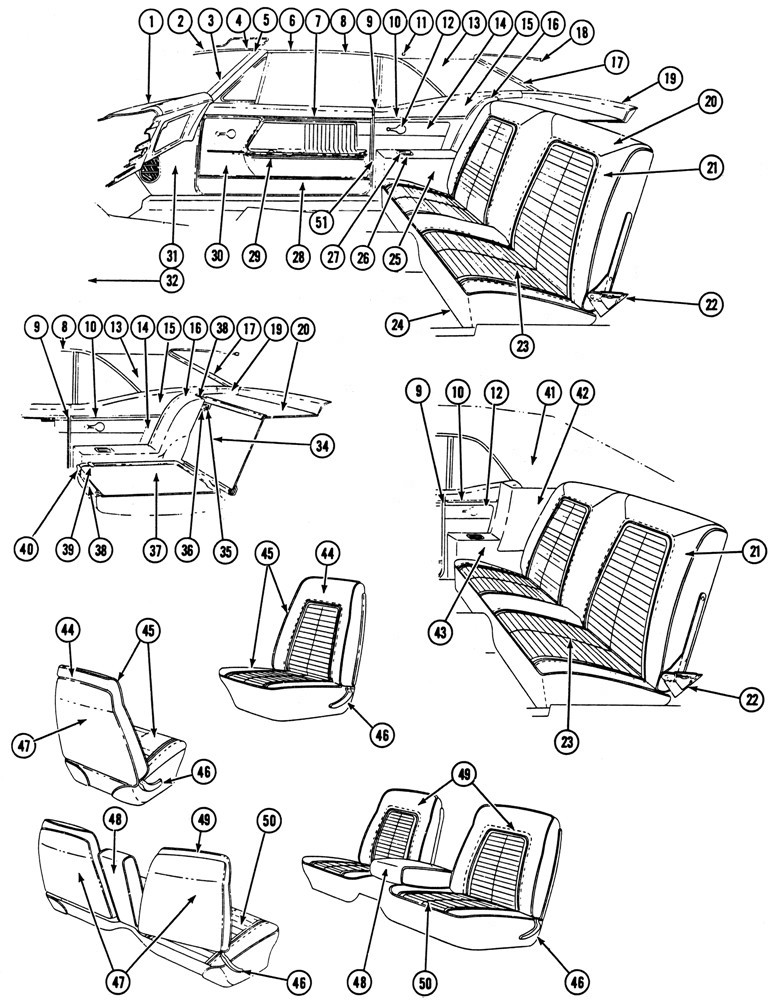

1967 Firebird Custom Interior Exploded View
26) Escutcheon,
Quarter arm rest
ash tray

27) Ash tray, Rear
quarter arm rest

28) Molding, Door
trim pad - lower

29) Cup, Front
door pull

30) Trim Pad, Front
door

31) Panel, Shroud
side trim - plastic

32) Carpet, Front
floor
33) Retainer, Rear
seat folding back
striker

34) Foundation,
Rear
compartment -
front

35) Cover, Rear
seat folding back
retainer finishing

36) Bumper, Rear
seat folding back

37) Panel, Rear
seat folding back

38) Molding, Rear
seat folding back
trim finishing
39) Striker, Rear
seat folding back
retainer

40) Cap, Rear seat
back upper corner
finishing

41) Trim, Folding
top roof

42) Trim, Top
comportment
side trim panel
- upper

43) Trim, Rear
quarter arm rest

44) Cover, Driver
& Passenger seat
back
45) Seat, Driver &
Passenger
- complete

46) Cover, Seat
back outer arm

47) Panel, Front
seat back

48) Cover, Front
seat back center
arm rest

49) Cover, Front
seat back

50) Cover, Front
seat cushion

51) Lace, Body
lock pillar trim
finishing


The illustrated parts break down illustrates individual part placement in the assembly.
