Firebird Convertible L.H. Exterior View

1967

Illustrated Parts Break Down

1) Bumper, Front

2) Panel, Hood

3) Ornament,
Hood Side - L.H.

4) Emblem, Hood
Side "400" L.H.

5) Blade,
Windshield Wiper
6) Molding,
Windshield Reveal -
Lower

7) Glass,
Windshield

8) Molding,
Windshield reveal -
Upper

9) Panel, Cowl
top vent louver
10) Molding,
Windshield reveal-
side

11) Molding,
Windshield pillar
finish

12) Glass, Front
door vent

13) Mirror,
Outside rear view
14) Trim, Folding
top cover

15) Molding, Rear
quarter pinchweld
finish

16) Panel, Rear
quarter side outer

17) Bumper, Rear

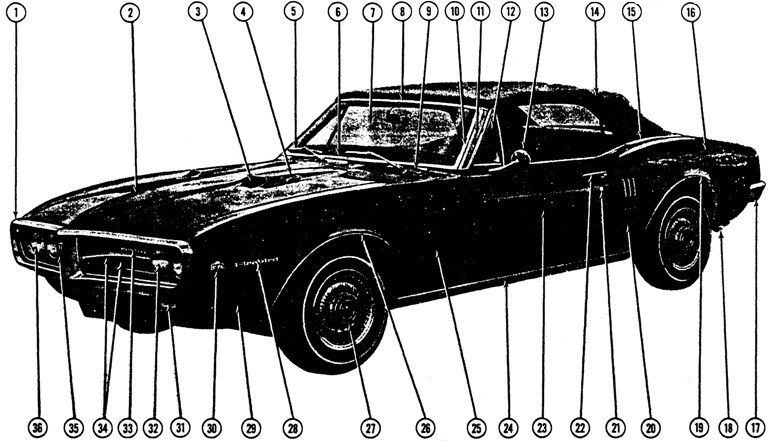

1967 Firebird Convertible L.H. Exterior View Exploded View
18) Extension pkg.,
Tail pipe

19) Molding pkg.,
Rear wheel opening

20) Molding pkg.,
Rear fender louver

21) Cylinder kit,
Door lock

22) Handle, Door
outside

23) Door assy.,
Front
24) Molding pkg.,
Rocker panel

25) Fender, Front

26) Molding pkg.,
Front fender wheel
opening

27) Disc, Wheel

28) Plate, Front
fender name
- "Firebird"
29) Extension
assy., Front fender

30) Emblem, Front
fender

31) Lamp assy.,
Parking

32) Sealed Beam
Unit, Headlamp -
single filament
33) Plate, Radiator
grille name -
"Pontiac"

34) Grille assy.,
Radiator

35) Emblem,
Front bumper

36) Sealed
Beam Unit,
Headlamp - Double
Filament


The illustrated parts break down illustrates individual part placement in the assembly.
