Firebird 6 Cyl. Air Injection System

1967

Illustrated Parts Break Down

1) Valve assy.,
Air injection check
- single inlet

2) Tube assy., Air injection 3) Fitting, Air injection tube - long (2 Req'd.)
4) Tube, Air
injection Extension

5) Fitting, Air Injection Tube - Short (4 Req'd)
6) Fitting, Air Injection Diverter Valve Vac. Hose
7) Hose, Air
Diverter Valve
Vacuum
(3/16" I.D. x
15-1/2")

8) Elbow, Air Diverter Valve Vacuum Hose
9) Bolt, Air
Diverter
Valve to Brkt.
(1/4"-20 x
7/8" 280M)

10) Nut, Air
Diverter Valve,
Brkt. to Pump
(5/16"-18 lock)

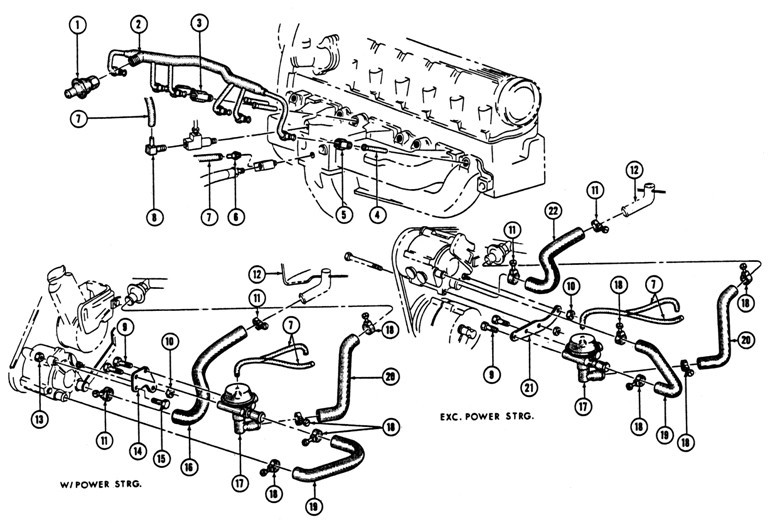

1967 Firebird 6 Cyl. Air Injection System Exploded View
11) Clamp, Inlet
or Outlet Hose
(1-1/8" to 1-7/16")

12) Cleaner & Silencer, Carburetor Air 13) Nut, Air Diverter Valve Brkt. To Pump (3/8"-16 lock)
14) Bracket, Air
Diverter Valve Mtg.
(w/Power Strg.)

15) Bolt, Air
Diverter Valve Brkt.
To Pump (3/8"-16 x
1-1/2" 280M)

16) Hose, Air
Injection Pump
Inlet
(w/Power Strg.)
17) Valve assy.,
Intake Air Diverter

18) Clamp, Inlet or Outlet Hose (7/8" to 1-1/8) 19) Hose, Pump Outlet to Air Diverter Valve
20) Hose, Air
Diverter Valve to
Check Valve

21) Bracket, Air
Diverter
Valve Mtg.
(w/Std. Strg.)

22) Hose, Air Injection Pump Inlet (w/Std. Strg.)


The illustrated parts break down illustrates individual part placement in the assembly.
