Firebird 6 Cyl.

Air injection Pump Installation

1967

Illustrated Parts Break Down

1) Bolt, Air pump to supports (3/8"-16 x 5 1/8")

2) Bolt, Pulley to air pump (5/16" - 24 x 1/2")

3) Pulley, Air pump

4) Nut, Steering pump pulley

5) Nut, Air pump support bolt (3/8"-16 Hex. Lock)

6) Washer, Steering pump pulley

7) Spacer, Air pump front to rear support

8) Pulley, Steering pump

9) Clip, Wire harness to head

10) Bolt, Air pump rear support to head (3/8"-16 x 7/8")

11) Support, Air pump - rear

12) Spacer, Pump bracket to rear support (13/32" x 1 " x 5/16 ")

13) Washer, Pump to mtg. brkt. (13/32" x 3/4" x 1/8")

14) Plug, Air pump pressure set

15) Pump assy., Air

16) Spacer, Air pump frt. support to strg. Pump support

17) Support, Air pump - front

18) Bolt, Air pump support to strg. Pump support (3/8" - 16 x 1 1/4")

19) Bolt, Air pump to support (3/8"-16 x 1 3/4")

20) Bolt, Air pump to support (3/8"-16 x 4 3/4")

21) Bolt, Air pump frt. support to bracket (3/8"-16 x 3 3/4")

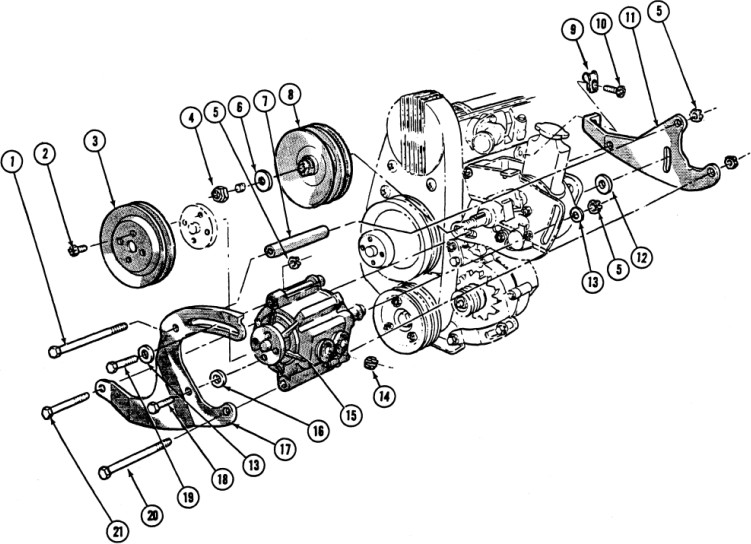

1967 Firebird 6 Cyl. Air injection Pump Installation Exploded View



The exploded view illustrates individual part placement in the assembly.
