Firebird 3 spd. Floor Shift

1967

Illustrated Parts Break Down

1) Rod, Trans. control - 2nd & 3rd

2) Bolt, Shifter lever to trans. (3/8"-16 x 1")

3) Lockwasher, Shifter lever to trans. (3/8")

4) Lever, Trans. shifter - 2nd & 3rd

5) Washer, Shifter lever to trans. (3/8" I.D. x 3/4" O.D. x 1/16")

6) Clip, Control rod to shifter lever

7) Nut, Stabilizer bracket to shaft (3/8"-16 Hex. lock)

8) Retainer, Stabilizer shaft grommet

9) Grommet, Stabilizer shaft to bracket

10) Bracket, Front stabilizer shaft to trans. case

11) Lockwasher, Stabilizer shaft brkt, to case bolt (7/16")

12) Bolt, Stabilizer shaft brkt. to case (7/16"-14x 1-3/8")

13) Shaft, Control lever & bracket - stabilizer

14) Seal, Underbody control lever

15) Retainer, Control lever seal

16) Screw, Control lever trim plate

17) Lever & Bracket assy., Trans. control

18) Knob, Trans. control lever

19) Nut, Control lever & bracket support (1-hole)

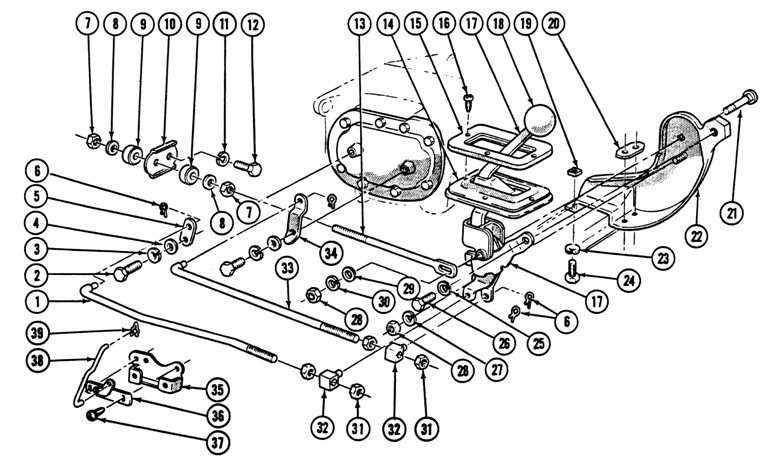

1967 Firebird 3 spd. Floor Shift Exploded View

20) Nut, Control lever & bracket Support (2-hole)

21) Bolt, Control lever & bracket (3/8"-16 x 3").

22) Support assy., Control lever bracket

23) Lockwasher, Control lever & bracket support (5/16")

24) Bolt, Control lever & bracket support (5/16"-18 x 7/8" )

25) Lockwasher, Control lever & bracket (3/8")

26) Bolt, Control lever & bracket (3/8-16 x 1")

27) Lockwasher, Control lever & bracket (3/8")

28) Nut, Control lever & bracket (3/8"-16 Hex. jam)

29) Washer, Control lever & bracket to support (3/8" ID x 3/4" O.D)

30) Lockwasher, Control lever & bracket (3/8" thick)

31) Nut, Control rod rear swivel adj.

32) Swivel, Trans. control rod

33) Rod, Trans. control - 1st & reverse

34) Lever, Trans. shifter - 1st & reverse

35) Bracket, Back-Up lamp switch

36) Switch assy., Back-up lamp

37) Screw & Lockwasher assy., Back-up lamp switch (#10-24x 1/2")

38) Rod, Back-up lamp switch control

39) Retainer, Back-up lamp switch rod



The exploded view illustrates individual part placement in the assembly.
