Front Suspension

1967-72 "F", 1971-72 "X"

Illustrated Parts Break Down

1) Bolt, Upper control arm to shaft (Part of #7)

2) Lockwasher, Upper control arm to shaft (Part of #7)

3) Retainer, Upper control arm bushing (Part of #7)

4) Bushing, Upper control arm (Part of #7)

5) Nut, Upper control arm to frame (7/16"-14-301M)

6) Shim, Upper control arm shaft

7) Shaft pkg., Upper control arm (Incl. #1-2-3-4)

8) Bolt, Upper control arm to frame

9) Arm assy., Front suspension upper control (Incl. #1-2 -3-4-7-10-11)

10) Fitting, Upper arm ball joint (1/4"-20 Straight)

11) Ball Stud pkg., Upper control arm

12) Dampener, Bracket & spacer assy., Body front (67 Styles)

13) Seal, Upper arm ball joint (Part of #11)

14) Bumper, Upper control arm

15) Screw & Washer assy., Damper to fender (3/8"-16 x 13/16")

16) Reinforcement, Damper mounting

17) Nut, Body dampener (3/8"-16)

18) Nut, Front Shock absorber to upper arm bolt

19) Nut, Reinforcement to lower control arm bracket

20) Reinforcement assy., Lower control arm bumper bracket

21) Knuckle, Steering

22) Gasket, Brake support to knuckle

23) Plate, Front brake backing

24) Bolt, Broke assy. to steering knuckle

25) Bolt, Front wheel hub

26) Hub & Drum, Front wheel brake

27) Bearing assy., Front wheel - outer

28) Cotter Pin, Steering knuckle spindle (1/8"-1")

29) Cap, Front wheel hub - inner

30) Nut, Steering knuckle (3/4"-20)

31) Washer, Steering knuckle spindle

32) Bearing assy., Front wheel - inner

33) Bolt, Front brake to steering knuckle

34) Seal assy., Front wheel hub - oil

35) Nut, Knuckle to lower control arm (9/16"-18 -301M)

36) Cotter Pin, Knuckle to control arm (1/8" x 1")

37) Arm, Steering knuckle

38) Nut, Front brake to steering knuckle (1/2"-20 - 301M)

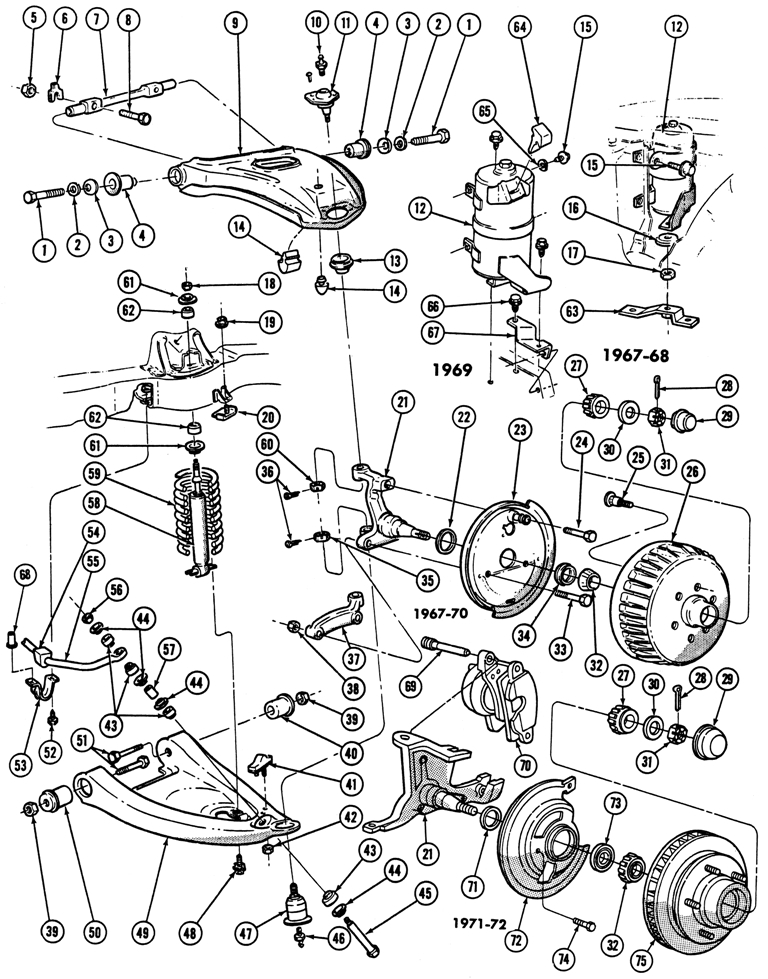

Front Suspension Exploded View

39) Nut, Steering knuckle lower control arm (1/2"-13 - 301M)

40) Bushing assy., Lower control arm - rear

41) Bumper, Lower control arm

42) Nut, Lower control arm bumper to control arm (3/8"-16)

43) Grommet, Front stabilizer link

44) Retainer, Stabilizer link bolt grommet

45) Link pkg., Stabilizer (Incl. #43-44 -56-57)

46) Fitting, Lower arm ball joint (1/4"-28 Straight)

47) Ball Stud & Seal assy., Lower control arm - also (Part of #49)

48) Screw, Shock absorber mounting

49) Arm, Steering knuckle support lower control (Incl. #40-47-50)

50) Bushing assy., Lower control arm - front

51) Bolt, Steering knuckle lower control arm (1/2"-13x 3-3/4"-301M)

52) Screw, Stabilizer shaft bracket (5/16"-18 x 1 1/8")

53) Bracket, Front stabilizer shaft

54) Bushing, Front stabilizer shaft (5/8"dia. hole)

55) Shaft, Stabilizer

56) Nut, Stabilizer link -front (5/16"-24)

57) Spacer, Stabilizer link bolt grommet

58) Shock absorber assy., Front

59) Spring, Front coil

60) Nut, Knuckle to upper control arm (1/2"-20-286M)

61) Retainer, Shock absorber grommet

62) Grommet, Shock absorber

63) Bracket assy., Body dampener - front (1968)

64) Bumper, Front fender support (1969)

65) Washer, Dampener to fender (1969)

66) Screw, Bracket to skirt (5/16"-18 x 3/4") (1969)

67) Bracket, Front fender skirt to dampener (1969)

68) Nut, Front stabilizer bracket to frame (3/8"-16)

69) Bolt, Front brake housing retainer

70) Caliper assy., Front disc brake

71) Seal assy., Front wheel hub - oil

72) Shield assy., Front disc brake splash

73) Bearing assy., Front wheel - outer

74) Bolt, Splash shield to steering knuckle (5/16"-18x 7/8")

75) Hub & disc assy., Front wheel



The exploded view illustrates individual part placement in the assembly.
