Pontiac Clutch Linkage

1967-70

Illustrated Parts Break Down

1)Bellows, clutch
pedal to
countershaft

2) Screw, Retainer
to dash
(1/4"-14 x 1")

3) Retainer, Clutch
rod bellows

4) Bolt, Brake/
clutch pedal pivot
(7/16"-14 x5")

5) Washer, Clutch
pedal pivot
(15/32"ID x 59/64"
 x 1/16")
6) Spacer, Clutch
pedal pivot

7) Bushing, Clutch
pedal

8) Rod, Clutch
pedal push

9) Pedal, Clutch

10) Bracket, Brake/
clutch pedal

11) Nut, Pivot bolt
(7/16-14)

12) Bumper, Clutch
control stop
13) Clip, Clutch
fork/pedal rods

14) Bushing, Clutch
pedal push rod

15) Pad, Clutch
/brake pedal

16) Bracket,
Countershaft-inner

17) Lockwasher,
Bracket to flywheel
housing (3/8")

18) Bolt, Bracket
to flywheel housing
(3/8"-16 x1")
19) Bolt, Brake/
clutch pedal pivot
(7/16"-14 x 2 1/2")

20) Fork, Clutch

21) Rod, Clutch
fork push

22) Spring, clutch
fork push rod
anti-rattle

23) Nut, push rod
adjusting (3/8"-16)

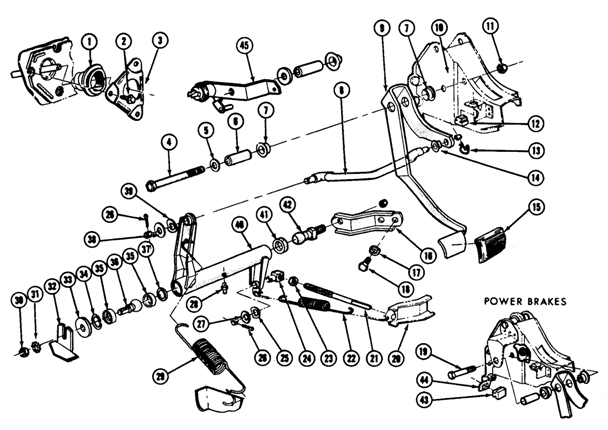

1967-70  Pontiac Clutch Linkage Exploded View
24) Swivel, Clutch
fork push rod

25) Washer, push
rod swivel to
countershaft
(21/64 ID x 9/16"
OD x 1/32")

26) Cotter pin,
Clutch rod
(3/32" x 5/8")

27) Washer, Push
rod swivel to
countershaft
(5/16"ID x 23/32"
OD)

28) Fitting,
Countershaft grease
29) Spring, Clutch
linkage return

30) Nut,
Countershaft
to frame
(3/8"-16)

31) Lockwasher,
Countershaft to
frame (3/8")

32) Bracket,
Countershaft to
frame

33) Seal, Clutch
control countershaft

34) Spring, Shaft
ball stud seat
retainer
35) Seat, Level
shaft ball stud

36) Stud, shaft ball
to frame

37) Washer, Ball
stud seat
(17/32" ID x
7/8"OD x 1/16")

38) Washer, Push
rodm to
countershaft
(13/32" ID x 13/16"
 OD x 1/16")

39) Washer, Push
rod to
countershaft -
spring
(13/32" ID x 3/4"
OD x .012)
40) Countershaft,
clutch control

41) Washer,
Countershaft inner
stud (1/2"ID x 7/8"
OD x 3/16")

42) Stud,
Countershaft-inner

43) Bumper, Clutch
pedal stop-
overtravel

44) Bracket, Clutch
pedal stop-
overtravel

45) Switch/bracket,
Tranny neutral
(1969-70)


The illustrated parts break down illustrates individual part placement in the assembly.
