Pontiac Brake System

1967-70



Illustrated Parts Break Down

1) Bolt, Brake pedal pivot (7/16"-14 x 3 1/2")(P.B.)

2) Bushing, Brake pedal shaft (nylon)

3) Pedal, Brake

4) Spacer, Brake pedal

5) Nut, Brake Pedal pivot bolt (7/16"-14)

6) Clip, Stop light switch to bracket

7) Switch assy., Stop light

8) Spring, Brake pedal return (w/Cruise Control) (S.B.)

9) Gasket, Vacuum cylinder to dash

10) Cylinder assy., Vacuum and master

11) Hose, Vacuum cyl. to carb. Fitting (3/8" ID x 32")

12) Bracket assy., Brake & clutch pedal mtg. (P.B.)

13) Pin, Master cyl. clevis to pedal

14) Cylinder assy., Brake master (P.B.)

15) Pipe, Master cyl. to dist.- front

16) Pipe, Master cyl. to dist. - rear

17) Distributor & Switch assy., Brake pipe

18) Cylinder assy., Brake master (S.B.)

19) Cover, Master cyl. Push rod hole-to-dash

20) Gasket, Master cyl. to dash

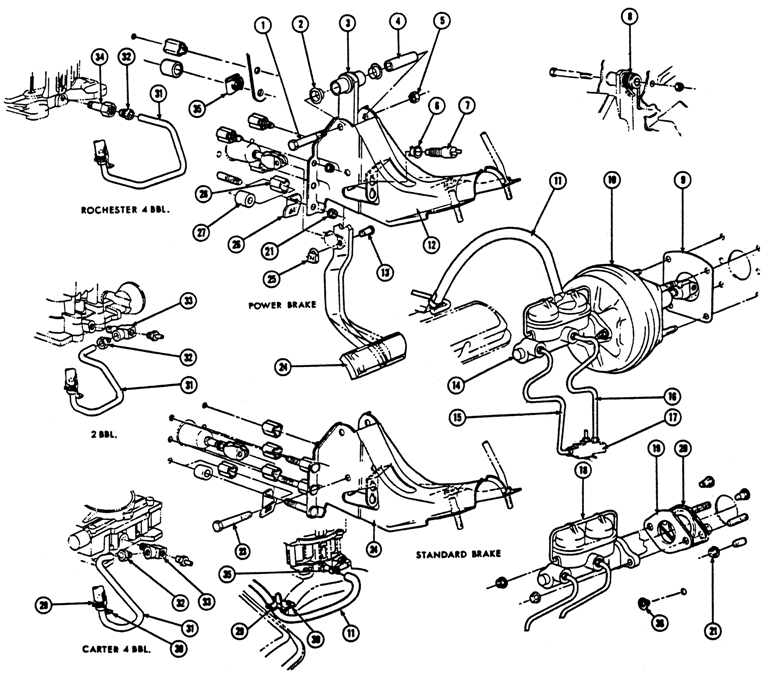

1967-70 Pontiac Brake System Exploded View

21) Nut, Cyl. to dash

22) Bracket assy., Brake & clutch pedal - mtg. (S.B.)

23) Bolt, Brake pedal pivot (7/16"-14 x 5") (S.B.)

24) Pad, Brake pedal

25) Retainer, Master cyl. clevis to pedal

26) Bracket, Clutch pedal stop over travel

27) Spacer, Brake & clutch pedal mtg. brkt, to dash.

28) Spacer, Brake & clutch pedal mtg. brkt. to dash.

29) Clamp, Exhaust hose

30) Bracket, Vacuum pipe

31) Pipe, Vacuum hose to carb. (3/8" OD Steel)

32) Fitting, Pipe to carb. Threaded sleeve (3/8" Tubing)

33) Fitting, Power brake pipe - 3 Way

34) Fitting, Trans. to carb. vacuum pipe - 1 Way

35) Fitting, Trans. to carb. vacuum pipe - 2 Way

36) Plug, Bracket mounting - dash



The exploded view illustrates individual part placement in the assembly.
