Firebird Coupe Weather-stripping

1967-69

Illustrated Parts Break Down

1) Strip, Shroud
vent grille sealing

2) Retainer,
Windshield lower
corner sealing
(1966)
3) Retainer,
Windshield pillar
upper corner
windshield

4) Channel assy.,
Quarter window
glass run front
5) Channel assy.,
Quarter window
glass run rear

6) Weatherstrip,
Compartment lid
gutter
7) Strip assy.,
Quarter window
glass run inner
& outer

8) Weatherstrip
assy., Front door

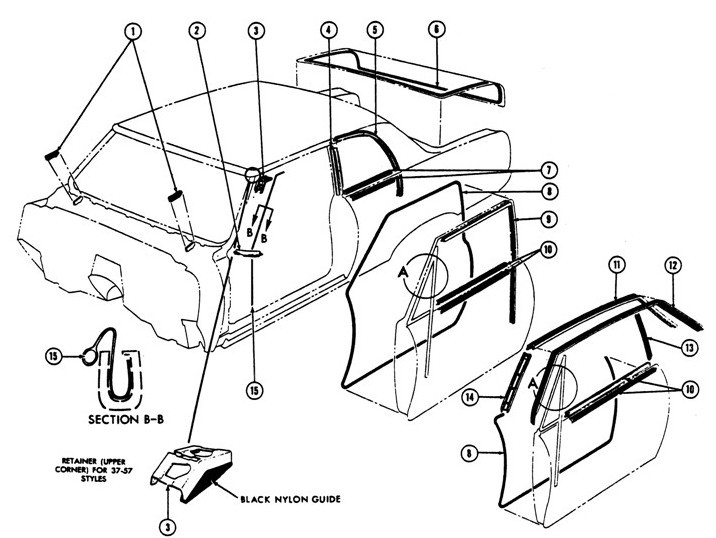

1967-69 Firebird Coupe Weather-stripping Exploded View
9) Channel assy.,
Door  window
glass run

10) Strip assy.
Door window glass
run inner & outer
11) Retainer, Side
roof rail
weatherstrip

12) Weatherstrip
assy., Side roof
rail
13) Weatherstrip
assy., Quarter
window frame

14) Retainer,
Windshield pillar
weatherstrip
15) Weatherstrip,
Front body hinge
pillar finish
(1964 Tempest)

16) Weather-
stripping Kits


The illustrated parts break down illustrates individual part placement in the assembly.
