Firebird Rear Quarter Window

1967-69

Illustrated Parts Break Down

1) Weatherstrip
assy., Quarter
window frame -
vertical

2) Channel,
Quarter window
front sash

3) Glass, Quarter
window

4) Strip assy.,
Quarter window
outer - at belt
5) Strip assy.,
Quarter window
inner - at belt

6) Filler, Lower
sash channel

7) Channel assy.,
Quarter window
lower sash

8) Bolt, Lower
sash channel to
glass
9) Regulator
assy., Quarter
window -manual

10) Stop assy.,
Quarter window -
upper

11) Spring, Window
regulator handle

12) Plate, Window
regulator handle
bearing
13) Handle assy.,
Quarter window
regulator

14) Spring,
Regulator handle
retaining

15) Roller, Quarter
window guide
- lower

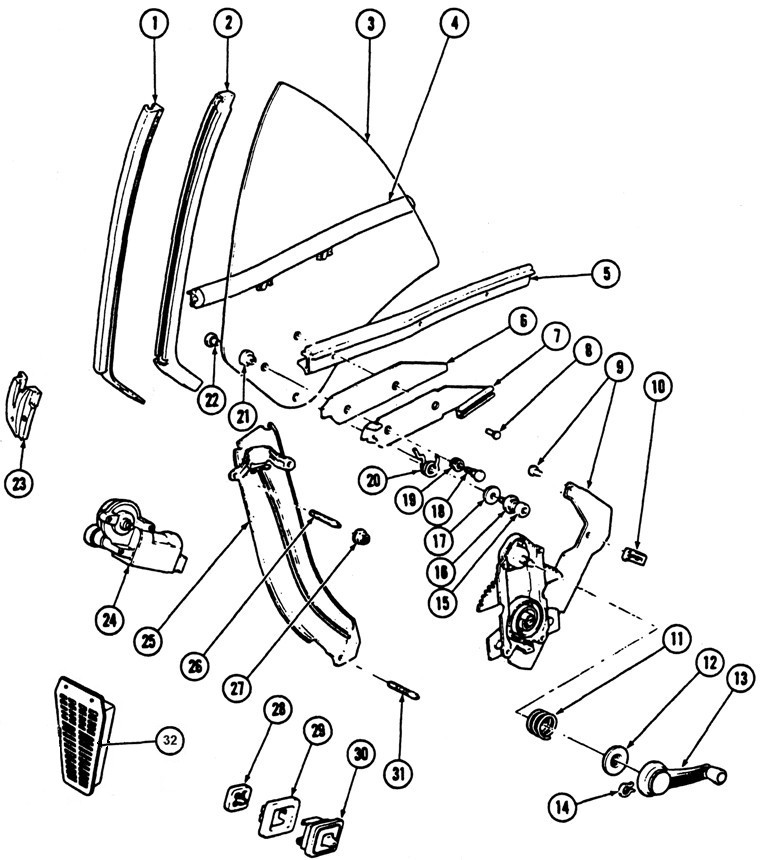

1967-69 Firebird Rear Quarter Window Exploded View
16) Washer,
Window guide
lower roller - steel

17) Washer,
Window guide
lower roller -
rubber

18) Pin, Sash
channel front
roller

19) Roller, Quarter
window sash
channel - front
20) Spring, Sash
channel front roller

21) Bushing,
Quarter window
guide lower roller

22) Nut, Quarter
window roller

23) Strip assy.,
Body lock pillar
upper corner
sealing

24) Motor assy.,
Quarter window
regulator - electric
25) Guide assy.,
Quarter window

26) Stud, Quarter
window guide -
upper

27) Nut, Quarter
window guide to
panel

28) Reinforcement,
Quarter trim - at
window switch
29) Retainer,
Window switch
escutcheon

30) Switch &
Escutcheon assy.,
Quarter window

31) Stud, Quarter
window guide -
lower

32) Valve assy.,
Body lock pillar
pressure relief


The illustrated parts break down illustrates individual part placement in the assembly.
