Firebird Engine & Transmission Mounting

1967-69



Illustrated Parts Break Down

1) Bracket, Engine front support to frame - (6 Cyl.)

2) Bolt, Engine frt. support brkt. to frame (3/8"-16 x 1 1/8")Lockwasher, Engine frt. support brkt. to frame (3/8" Med.)

3) Bolt, Engine frt. mtg. insul. to cyl. block (7/16"-14 x 1 3/4")

4) Spacer, Engine frt. mtg. insul. to cyl. Block (F/6 4 B.C. - M.T.)

5) Bolt, Engine frt. insul. to cyl. block (7/16"-14 x 1 " - 300 M)

6) Washer, Engine frt. insul. to cyl. block

7) Insulator assy., Engine front - (6 Cyl.)

8) Brace, Eng. front support brkt. to frame - (6 Cyl.)

9) Nut, Frame brace to lower control arm (1/2"-13 - 301 M) 10) Nut, Eng. frt. support brkt. to frame (3/8 "-16 - 286 M)

11) Lockwasher, Eng. frt. mtg. insul. to supt. brkt.

12) Lockwasher, Eng. frt. mtg. insul. to supt. brkt. (1/2" Heavy)

13) Bolt, Eng. frt. mtg. insul. to supt. brkt. (1/2"-20x 1 1/8")

14) Support assy., Transmission rear

15) Bracket, Eng. front supt. to frame - (8 Cyl.)

16) Insulator assy., Engine front - (8 Cyl.)

17) Brace, Eng. front supt. brkt. to frame - (8 Cyl.)

18) Bolt, Eng. front mtg. insul. to cyl. block - (8 Cyl.)

19) Brace, Starter motor

20) Nut, Trans. support mtg. (3/8"-16)

21) Lockwasher, Trans. support mtg. (3/8" Med.)

22) Washer, Trans. support mtg. (13/32" I.D. x 3/4" O.D.)

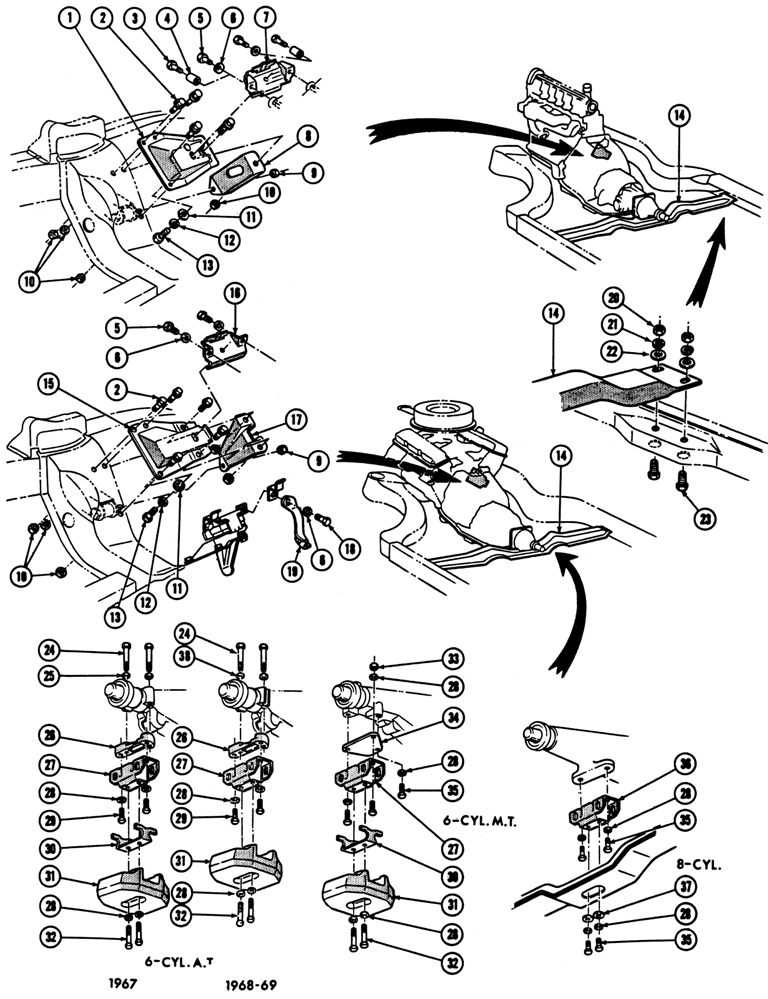

1967-69 Firebird Engine & Transmission Mounting Exploded View

23) Bolt, Trans. support mtg. (3/8 "-16 x 1 " - 280 M)

24) Bolt, Drive line damper mtg. adap. to trans. ext. (3/8"-16 x 2 3/4"- 280M)

25) Lockwasher, Drive line damper mtg. adap. to trans. ext. (3/8" Med.)

26) Adapter, Drive line damper mtg. (6 Cyl. - A.T.)

27) Mounting assy., Transmission

28) Lockwasher, Trans. support mtg. (7/16" Heavy)

29) Bolt, Trans. supt. mtg. assy. to adapter (7/16"-14 x 1 1/8" - 280 M)

30) Retainer, Drive line damper (6 Cyl.)

31) Weight, Drive line damper (6 Cyl.)

32) Bolt, Drive line damper weight to mtg. assy. (7/16"-14x 1 5/8"- 280M)

33) Nut, Trans. supt. mtg. assy. to adapter (7/16" - 14)

34) Adapter, Drive line damper mtg. (6 Cyl.- M.T.)

35) Bolt, Trans. supt. mtg. assy. to adapter (7/16"-14 x 1"- 280 M)

36) Mounting assy., Transmission support

37) Washer, Trans. support mtg. (3/8" I.D. x 15/32" O.D, x 11/64)

38) Washer, Adapter to ext. (1" O.D. x 13/32" I.D.)



The exploded view illustrates individual part placement in the assembly.
