Firebird Auto Trans.

Column Shifter Linkage

1967-69

The Poorman's Off Chassis Restoration.Com
Car Nose Logo   Back Button
Photo Gallery Pin-ups Store Parts
Specs Erudition IPC Comedy
Contact
Web Cam Video Destructive Tests




Illustrated Parts Break Down

1) Rod, Gearshift
control- upper

2) Sleeve, Control rod to levers
(5/16" I.D. x 7/16" O.D. x 3/8")
3) Grommet, Upper rod to strg. column
4) Washer, Control rod to col. assy. & levers
5) Clip, Control rod
to shift levers

6) Indicator, Gearshift
7) Pin, Control lever pivot
8) Spring, indicator to turn signal switch
9) Lever, Gearshift
control

10) Knob, Gearshift lever
11) Bushing, Control idler lever to support
12) Lever, Control rod idler
13) Rod, Gearshift
control- lower

14) Lock, Control rod idler lever (13/16" OD)
15) Lever, Range selector- outer
16) Nut, Selector lever to trans. (3/8"-16)

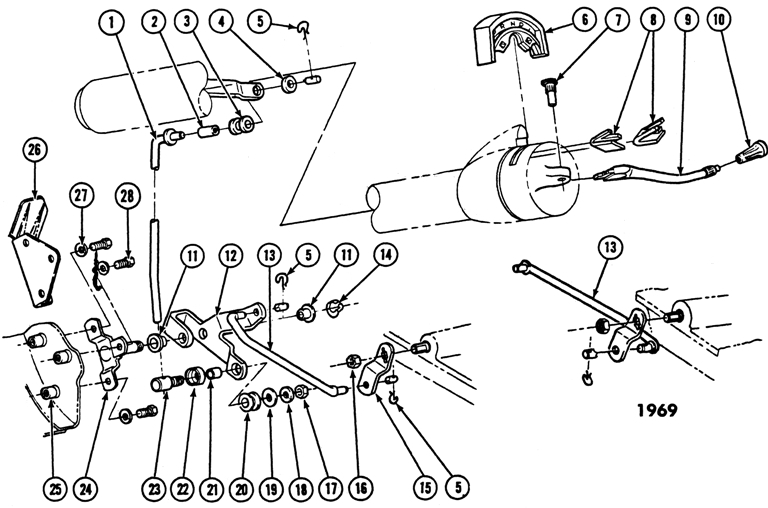

1967-69 Firebird Auto Trans Column Shifter Linkage Exploded View
17) Nut, Idler lever
to swivel
(3/8"-16)

18) Lockwasher, Idler lever to swivel (3/8')
19) Washer, Gearshift control rod
20) Grommet,
Control rod to
gearshift levers

21) Bushing, Control rod to lever (3/8" ID x 1/2" OD x 1/2")
22) Clamp, Control rod (13/32" ID x 25/32" OD)
23) Swivel, Control
rod
(3/8"-16 x 1-1/2")

24) Support, Control rod idler lever
25) Nut, Idler lever to frame (5/16"-18)
26) Shield, Trans.
control splash

27) Lockwasher, Support to frame (5/16")
28) Bolt, Support to frame (5/16"-18 x 11")


The illustrated parts break down illustrates individual part placement in the assembly.
