Firebird 8Cyl. 2 & 4 Bbl. Carburetors

1967-69

Illustrated Parts Break Down

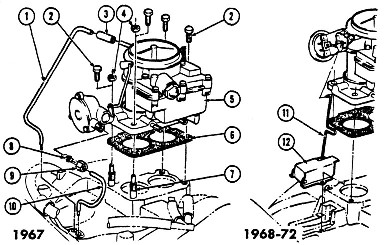

1) Tube, Carb. To
manifold
choke heat

2) Bolt, Carb. To manifold
(5/16"-18 x 1")
3) Hose, Carb. To choke heat tube
(7/32" x 1 1/4")
4) Nut, Carb. To
manifold stud
(5/16"-24)

5) Carburetor assy., Rochester 2-Bbl
6) Gasket, Carb. To
manifold

7) Stud, Carb. To manifold
(5/16"-18 x 5/16"- 24 x 1 13/16")
8) Sleeve, Heat tube to choke (1/4")
9) Nut, Heat tube
to choke (1/4")

10) Tube, Manifold to carb. Choke heat
11) Rod, Coil to choke lever (1968-72)

1967-69 Firebird 8Cyl. 2 & 4 Bbl. Carburetors Exploded View Exploded View
12) Thermostat
assy., Auto choke
(1968-72)

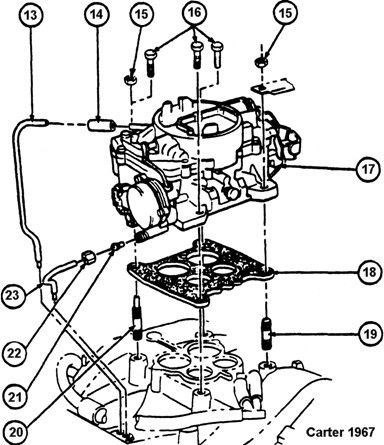

13) Tube, Carb. To
manifold
choke heat

14) Hose, Carb.
To choke heat tube
(7/32" x 1 1/4")
15) Nut, Carb. To
manifold
(5/16"-24)

16) Bolt, Carb. To
 manifold
(5/16"-18 x 1 1/4")
17) Carburetor assy., Carter 4 Bbl
18) Gasket, Carb,
to manifold

19) Stud, Manifold to carb. (5/16"-24 x 5/16"-18 x 1 5/8")
20) Stud, Carb, to manifold (5/16"-18 x 2 1/8"-Hollow)

21) Sleeve, Heat
tube to choke
(1/4")

22) Nut, Heat Tube to choke (1/4")
23) Tube, Manifold to carb. Choke heat


The illustrated parts break down illustrates individual part placement in the assembly.
