Firebird 6 Cyl. 1 & 4 Barrel Carburetors

1967-69

Illustrated Parts Break Down

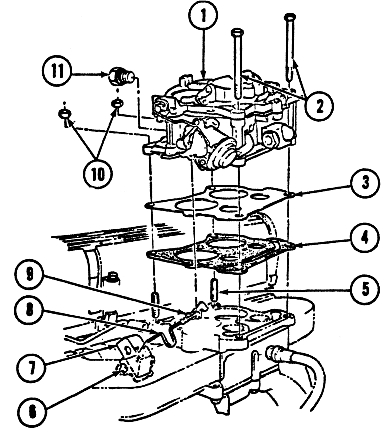

1) Carburetor
assy., Rochester
4-Bbl.

2) Bolt, Carb. to manifold (5/16"-1B x 3-5/8")
3) Baffle, Carb. to manifold gasket (1967)
4) Gasket, Carb.
to manifold

5) Stud, Carb. to manifold (5/16"-24 x 1-3/8")
6) Screw assy.,
Choke to manifold
(1/4"_20 x 5/16")
7) Thermostat assy., Automatic choke 8) Rod, Choke control
9) Clip, Choke rod
to carb.

10) Nut, Carb. To
manifold stud
(5/16"-24)

11) Plug, Carb.
vacuum hole
(1/8")

1967-69 Firebird 6 Cyl. 1 & 4 Barrel Carburetors Exploded View
Exploded View

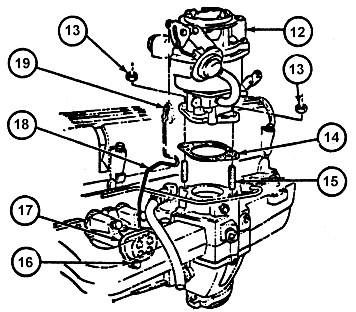

12) Carburetor
assy., Rochester
1-Bbl.

13) Nut, Carb. To
manifold stud
(3/8"-24)
14) Gasket, Carb.
To manifold

15) Stud, Manifold to carb (3/8"-16 x 1" 9/32")
16) Screw assy.,
Choke to manifold
(1/4"-20 x 3/8")
17) Thermostat assy., Choke w/cover
18) Rod, Choke
themo. lever to
carb. choke lever

19) Clip, Choke
rod to carb.


The illustrated parts break down illustrates individual part placement in the assembly.
