Firebird Instrument Panel Hardware

1967-68

Illustrated Parts Break Down

1) Nozzle assy.,
Defroster Air

2) Compartment
assy., Instrument
panel

3) "U" NUT, Inst.
panel compt. to
inst. panel (10-24)

4) Nut, Assist grip
retaining (10-24)

5) Spacer,
Instrument panel
assist grip mounting

6) Plate,
Instrument panel
defroster opening
(Exc. Heater)
7) Screw and
Washer, Compt.
door striker to inst.
panel
(10-24 x 3/8")

8) Striker,
Instrument panel
compt. Door lock

9) Bumper,
Instrument panel
compt. Door

10) Bezel,
Instrument panel
assist grip mounting

11) Handle and
pad, Inst. panel
assist grip

12) Bumper,
Instrument panel
compt. Door stop
13) Retainer,
Instrument panel
trim plate
(Nylon)

14) Bumper,
Instrument panel
ash tray

15) Screw, Inst.
panel trim plate
retainer
(8-18 x 1/2"
Pan Hd.)

16) Hinge,
Instrument panel
compt. Door

17) Screw and
Washer, compt;
door to hinge
(10-24 x 3/8")

18) Door assy.,
Instrument panel
compt
19) Screw, Inst.
panel compt. Door
lock cyl. case to
door
(6-32 x 5/16")

20) Cylinder assy.,
Inst. panel
compt: lock

21) Case & Bolt
assy., Instrument
panel compt. lock

22) Clip, Inst.
panel compt. Door
frame

23) Emblem,
Inst. panel compt.
Door (Firebird)

24) Cover, Radio
control opening

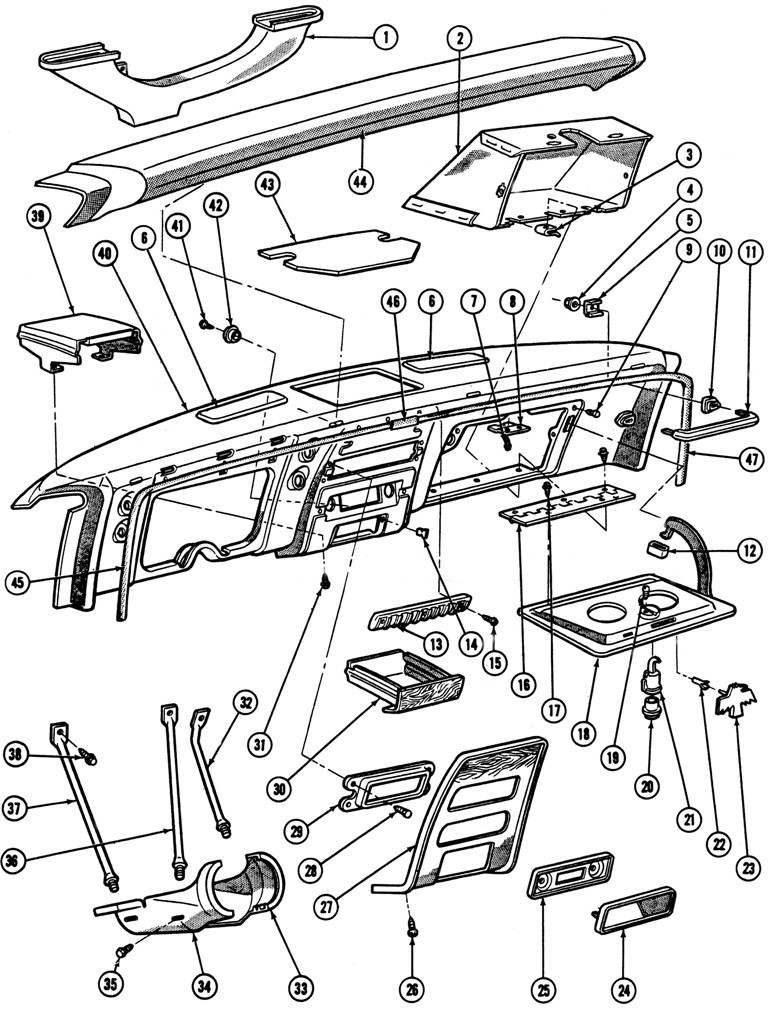

1967-68 Firebird Instrument Panel Hardware Exploded View
25) Plate, Radio
trim (w/Radio)

26) Screw, Inst.
panel trim plate to
inst. panel
(8-18 x 1/2")

27) Plate, Inst.
panel trim

28) Screw, Inst.
panel control to
cover (10-16 x 3/4")

29) Cover, Heater
control opening
(Exc. Heater)

30) Ash Tray assy.,
Instrument panel
31) Screw, Ash
tray retainer to
inst. panel
(18-18 x 1/2")

32) Support,
Steering column
inner rear

33) Cover, Steering
gear jacket - inner

34) Cover, Steering
gear jacket - outer

35) Screw, Outer
cover to inner cover
(8-32 x 7/16")
36) Support,
Steering column
inner - front

37) Support,
Steering column -
outer

38) Screw and
Washer, Outer
support to dash
(5/16" - 18 x 3/4")

39) Retainer,
Instrument panel
ash tray

40) Panel assy.,
Instrument

41) Screw, Radio
control opening
cover retainer
42) Retainer, Radio
control opening
cover

43) Cover,
Instrument panel
speaker opening
(exc. Radio)

44) Pad assy.,
Instrument panel

45) Molding, Inst.
panel cover finish
- L.H.

46) Escutcheon,
Cover finish molding

47) Molding, Inst.
panel cover finish
- R.H.


The illustrated parts break down illustrates individual part placement in the assembly.
