Firebird Headlights

1967-68

Illustrated Parts Break Down

1) Screw assy.,
Headlamp beam
adj.

2) Headlamp
assy.

3) Ring,
Headlamp mount
(outboard)
4) Beam Unit,
Headlamp Type 2

5) Ring,
Headlamp retaining

6) Screw,
Headlamp mount
ring (8-32 x 3/8")
7) Ring, Headlamp
retaining

8) Beam Unit,
Headlamp Type 1
9) Ring, Headlamp
mount (inboard)

10) Screw,
Headlamp mount
(1/4"-20 x 5/8"
Hex)

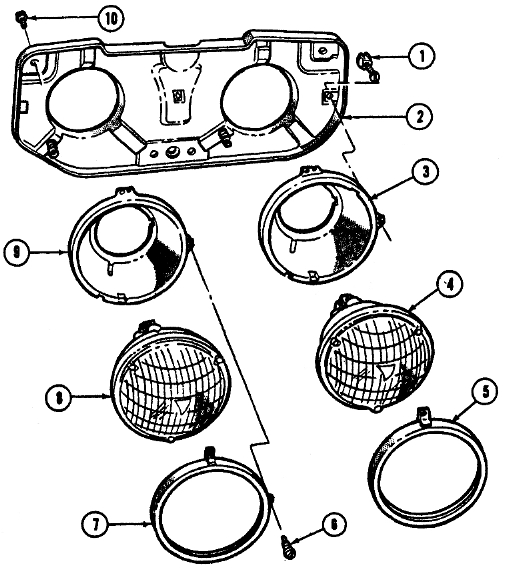

1967-68 Firebird Headlights Exploded View



The illustrated parts break down illustrates individual part placement in the assembly.
