Firebird Grilles

1967-68

Illustrated Parts Break Down

1) Molding R.H.
400 Sport option

2) Screw
(#8-18 x 5/8")

3) Escutcheon,
Plastic
4) Grille R.H., Exc.
400 option
Grille R.H., 400
option

5) Screw
(1/4"-20 x 5/8")
6) Nut (1/4"-20)
U-Shape

7) Grille L.H., Exc.
400 option
Grille L.H., 400
option
8) Bracket

9) Nut,
(1/8" Stamped)

10) Nut

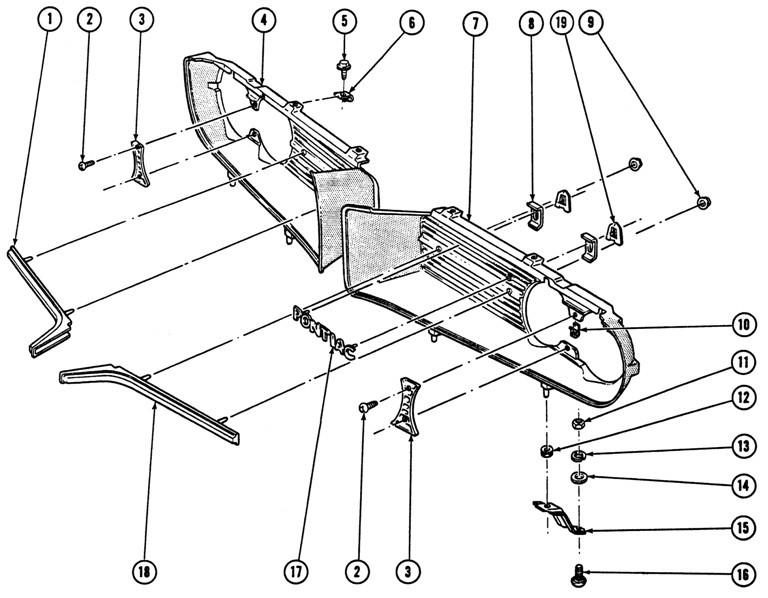

1967-68 Firebird Grilles Exploded View
11) Nut (3/8"-16)

12) Grommet

13) Lockwasher
(3/8")
14) Washer (3/8")

15) Bracket
16) Bolt

17) Emblem
18) Molding L.H.
400 Sport option

19) Retainer


The illustrated parts break down illustrates individual part placement in the assembly.
