Firebird Exhaust

1967-68

Illustrated Parts Break Down

O.H.C.
SIX-CYLINDER
EXHAUST - 1
BARREL
CARBURETOR

1) Flange, Exhaust
Pipe

2) Pipe, Exhaust - Front
3) Pipe, Exhaust -
Rear

4) Muffler, Exhaust

5) Pipe, Muffler Tail
A) Bolt, Flange to manifold (3/8"-16 x 2")
B) Clamp pkg.,
Hanger to pipe
Hanger assy.,
Exhaust pipe Screw,
Hanger to frame
(2 ea.)

C) Clamp pkg., Muffler to pipe
D) Hanger assy.,
Tail pipe Clamp,
Hanger to pipe
Screw, Clamp to hanger Screw, Hanger to frame
(1/4"-20 x 1/2") (2 ea.)
E) Clamp pkg., Muffler to tail pipe

O.H.C.
SIX-CYLINDER
EXHAUST - 4
BARREL
CARBURETOR

1) Pipe, Exhaust
- Front (1967)
Pipe, Exhaust - Front (1968)
2) Pipe, Exhaust - Inter. (1967)
Pipe, Exhaust - Inter. (1968)
3) Pipe, Exhaust -
Rear

4) Muffler, Exhaust
5) Pipe, Muffler Tail A) Bolt, Flange to manifold
(3/8"-16 x 2") (2 ea.)
B) Clamp pkg.,
Front pipe to
intermediate pipe

C) Clamp pkg., Hanger to pipe
Hanger assy., Exhaust pipe
Screw, Hanger to frame (2 ea.)
D) Clamp pkg., Muffler to pipe
E) Hanger assy.,
Tail pipe Clamp,
Hanger to pipe
Screw, Clamp to hanger Screw, Hanger to frame
(1/4"-20 x 1/2") (2 ea.)
F) Clamp pkg., Muffler to tail pipe

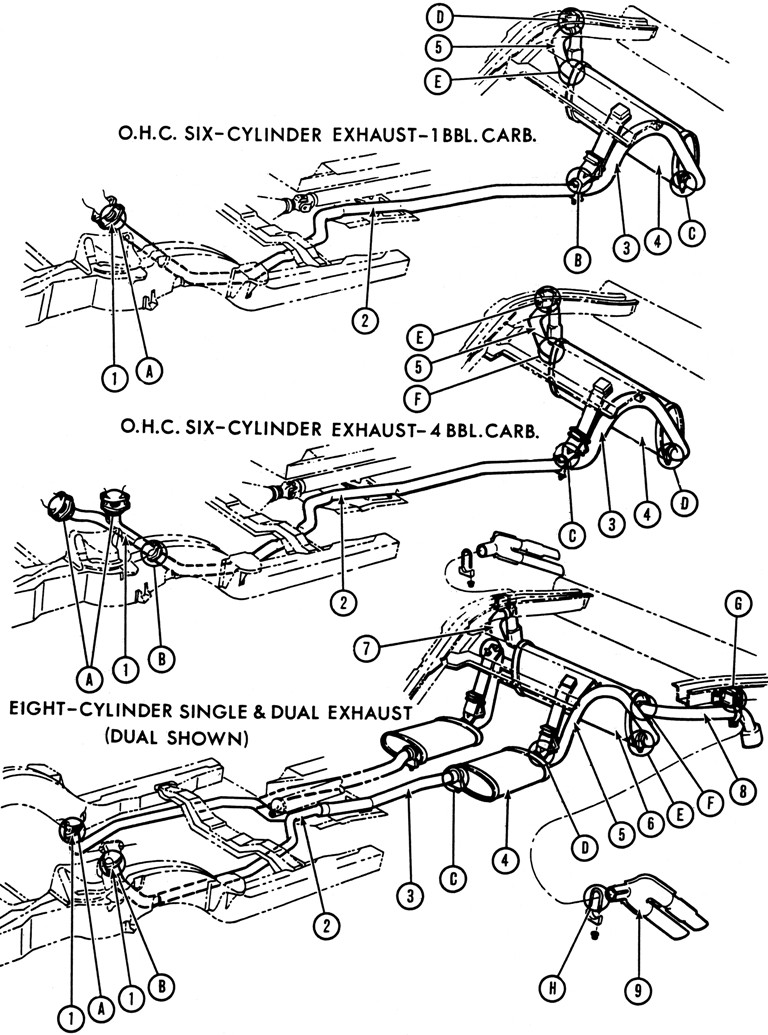

1967-68 Firebird Exhaust Exploded View
EIGHT-CYLINDER
       SINGLE & DUAL
       EXHAUST
(DUAL SHOWN)
1
) Flange, Exhaust pipe - exc. Ramair (Dual) (2 ea.) Flange, Exhaust pipe - with Ramair (Dual) (2 ea.) 2) Pipe, Exhaust - Front - R.H. - exc. Ramair (Dual) Pipe, Exhaust - Front - L.H. - exc. Ramair (Dual) Pipe, Exhaust - Front - R.H. - with Ramair (Dual) Pipe, Exhaust - Front - L.H. - with Ramair (Dual) Pipe, Exhaust - Front (Single) 3) Pipe, Exhaust - Rear (Single) 4) Resonator, Exhaust - R.H. (Dual) Resonator, Exhaust - L.H. (Dual) 5) Pipe, Exhaust - Rear - R.H. (Dual) Pipe, Exhaust - Rear - L.H. (Dual)
6) Muffler, Exhaust
(Dual)
Muffler, Exhaust
(Single)

7) Pipe, Muffler tail
- R.H. (Dual)
Pipe, Muffler tail
(Single)

8) Pipe, Muffler tail
- L.H. (Dual)

9) Extension pkg.,
Tail pipe - R.H. &
L.H. (Dual)
Extension pkg.,
Tail pipe (Single)

A) Bolt, Flange to manifold - R.H. (3/8"-16 x 2") Ramair (2 ea.)
Bolt, Flange to manifold - R.H. (3/8"-16 x 1-5/8")
exc. Ramair (2 ea.) B) Bolt, Flange to manifold -L.H. (3/8"-16 x 1-1/2")
Ramair (2 ea.)
Stud, Manifold to flange - L.H. exc. Ramair (2 ea.)
Nut, Stud to manifold &
flange (2 ea.)
C) Clamp pkg.,
Resonator to pipe
- Front (2 ea.)

D) Clamp pkg., Resonator to pipe - rear (Dual) (2 ea.)
Clamp pkg., Hanger to
pipe (Single)
Hanger assy., Exhaust pipe (Single & Dual) (2 ea.)
Screw, Hanger to Frame - LH. (Single & Dual) (2 ea.)
Screw, Hanger to Frame -R.H. (5/16"-18 x 7/8") (Dual) (2 ea.)
Nut, Hanger to Frame - R.H. (5/16"-18) (Dual) (2 ea.)
SUPPORT, Pipe & muffler
(8-Cyl. Single) (2nd Type)
Bracket, Pipe & muffler supt.
(8-Cyl. Single) (2nd Type)
Bracket, Muffler supt to pipe brkt (2ndType) (8-Cyl. Single)

E) Clamp pkg.,
Pipe to muffler
(Dual) (2 ea.)
Clamp pkg., Pipe to muffler
(Single)
F) Clamp pkg., Muffler to tail pipe
(Dual) (2 ea.)
Clamp pkg., Muffler to tail pipe
(Single)
G) Hanger assy., Tail pipe - R.H. (Single & Dual)
Hanger assy.,Tail pipe - LH. (Dual)
Clamp, Hanger to
pipe (2 ea.)
Screw, Hanger to frame
(1/4"-20 x 1/2") (4 ea.)
Nut, Hanger to frame
(1/4"-20 Blind) (4 ea.)
Screw, Tail pipe clamp
(#20-9 x 1-1/2")
H) Clamp pkg., Extension
(Also Incl. in Ext. Pkg.) (2 ea.)


The illustrated parts break down illustrates individual part placement in the assembly.
