Firebird Disc Brake System

1967-68

Illustrated Parts Break Down

1) Pipe, Front
brake - L.H.
(Exc. P.B.)

2) Pipe, Front brake - R.H. (Exc. P.B.)
3) Screw & Washer assy., Switch to brkt.
(5/16"-18 x 5/8")
4) Nut, Cylinder to bracket (3/8"-16)
5) Lockwasher, Cylinder to bracket (3/8")
6) Bracket, Brake pipe dist. & switch
7) Distributor &
Switch assy.,
Brake pipe

8) Cylinder assy.,
Brake master

9) Boot, Master
cyl. push rod

10) Screw & Washer assy., Metering valve to brkt.
11) Gasket, Master cylinder mounting
12) Bracket, Front brake metering valve
13) Pipe, Master
cyl, to dist. &
Switch - rear

14) Valve, Front brake metering 15) Pipe, Frt. brake metering valve to dist. & Switch
16) Pipe, Master cyl, to brake pressure reg. valve
17) Pipe, Rear brake intermediate
18) Screw, Valve to frame (5/16"-18 x 9/16")
19) Valve, Rear
brake pressure
regulator

20) Pipe, Rear brake - front
21) Screw, Bracket to frame (5/16"-18 x 3/4")
22) Bolt, Splash shield & brkt. to knuckle
(9/16"-18 x 1 1/4")
23) Bolt, Splash shield & brkt. to knuckle (1/2"-20 x 2 3/4")

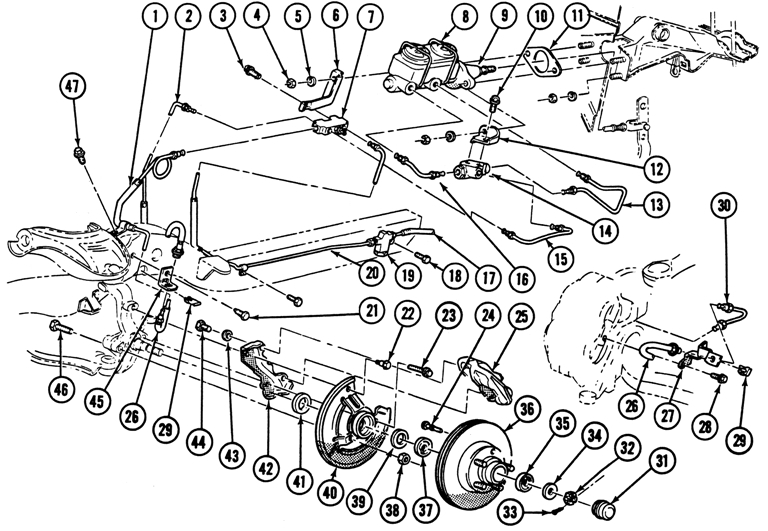

      1967-68 Firebird Disc Brake System Exploded View
24) Bolt, Front
wheel hub

25) Brake assy., Front disc (serviced by components)
26) Hose assy., Front brake
27) Bracket, Frt. Brake hose to brake supt
28) Screw, Brkt. to brkt. support brkt. (5/16"-18 x 5/8")
29) Retainer, Broke hose to supt. brkt.
30) Pipe, Front
brake hose

31) Cap, Front
wheel hub - inner

32) Nut, Steering knuckle spindle (3/4"-20)
33) Cotter Pin, Strg. knuckle
spindle nut (1/8"-1")
34) Washer, Steering knuckle spindle
35) Bearing assy., Front wheel - outer
36) Hub & Disc
assy., Front wheel

37) Bearing assy.,
Front wheel - inner

38) Nut, Splash
shield to knuckle
(1/2"-20-300M)
39) Seal assy., Front wheel hub - oil
40) Shield assy., Front disc brake splash
41) Gasket, Frt. disc brake to shield
42) Bracket, Front disc brake mounting
43) Lockwasher,
Disc brake to mtg.
brkt. (7/16" Heavy)

44) Bolt, Disc
brake to mtg. brkt.
(7/16"-14 x 1 1/4"- 300M)
45) Bracket, Frt. brake hose frame
46) Bolt, Splash shield to knuckle
(1/2"-20 x 2 1/4")
47) Screw, Pipe clip to frame (#10-16 x 1/2")


The illustrated parts break down illustrates individual part placement in the assembly.
