Firebird Front Bumper

1967-68

Illustrated Parts Break Down

1) Bumper
2) Reinforcement
       R.H.

3) Bolt
(3/8"-16 x 1 1/4")
4) Nut (5/16"-18)

5) Stabilizer

6) Washer
(1 1/8" O.D.)

7) Pushnut
(3/8"-16)
8) Bar R.H.

9) Washer
(13/32"I.D.
x 3/4" O.D)

10) Lock Washer
(3/8")
11) Nut
(3/8"-16)

12) Lock
       Washer (3/8")

13) Washer
(13/32"ID x 3/4"
O.D)

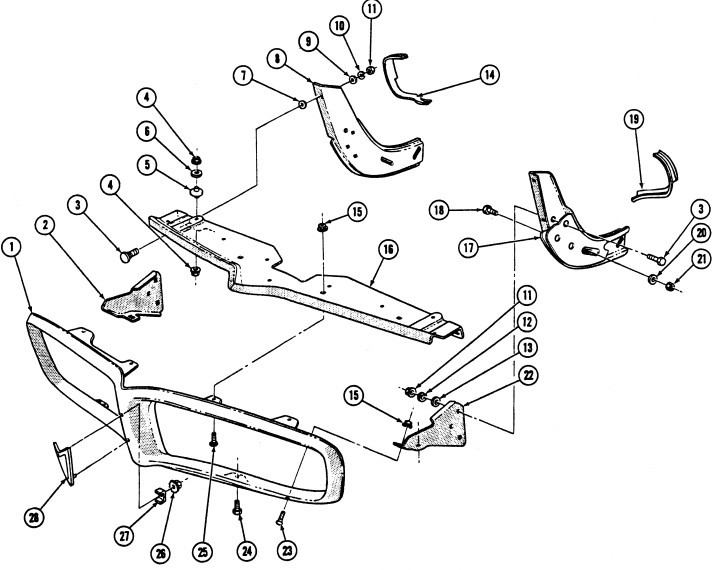

       1967-68 Firebird Front Bumper Exploded View
14) Filler R.H.
Plastic

15) Nut (3/8"-16)

16) Reinforcement

17) Bar L.H.
18) Bolt

19) Filler L.H.
Plastic

20) Lock Washer
(3/8")

21) Nut (1/2"-13)
22) Reinforcement
L.H.

23) Bolt
(3/8"-16 x 7/8")

24) Bolt
(3/8"-16 x 1")
25) Bolt
(3/8"-16 x 1")

26) Nut
(#10-24)

27) Spacer

28) Emblem


The illustrated parts break down illustrates individual part placement in the assembly.
