Pontiac Turbo-Hydramatic (M-40)
Oil Cooler, Oil Filler & Vacuum Pipes

1965-72

Illustrated Parts Break Down

1) Fitting, Vac. pipe
to carb. (3-Way)

2) Fitting, Vac.
hose to carb.

3) Nut, Threaded
sleeve(1/4"
Tubing- 7/16"-24)
4) Fitting, Vac.
Pipe to carb.
(3-Way)

5) Fitting, Carb.
vac.extension -
W/Pipe (3-Way)

6) Clamp, Vacuum
hose (11/16")
7) Hose, Carb.
Fitting pipe
(11/32"I.D. x
1 1/2").

8) Pipe, Hose to sleeve (3/8")
9) Plug, Vac. Pipe or carb. vac. fitting
10) Nut, Threaded
sleeve (3/8" Tubing
- 9/16"-20)

11) Fitting, Vacuum
pipe to front carb.

12) Fitting, Carb. vacuum connector

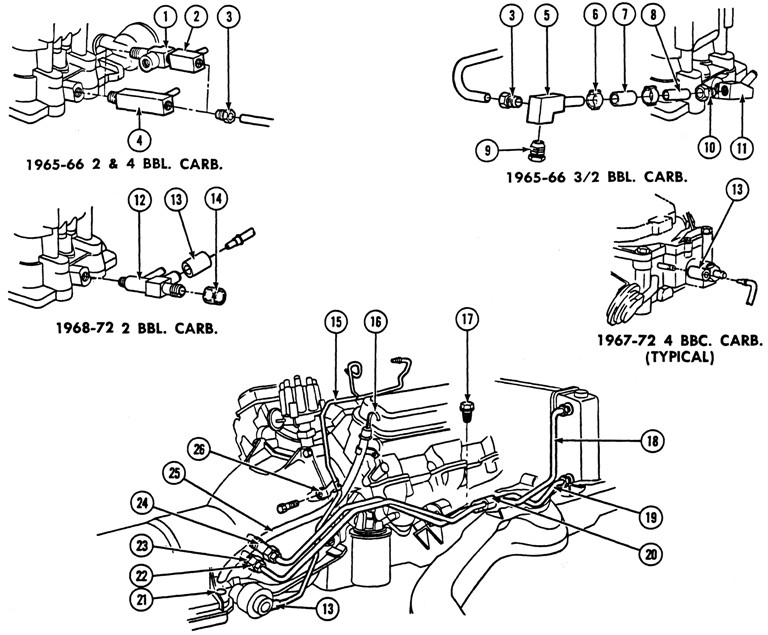

1965-72 Pontiac Turbo-Hydramatic (M-40) Exploded View
13) Hose, Pipe
to fitting
(7/32"ID x 1 5/16")

14) Cap, Carb. Vacuum tube
15) Pipe, Carb. to trans. vacuum
16) Indicator rod, Trans. oil level
17) Screw, Pipe
clip to frame
(5/16"-18 x 3/4")

18) Pipe assy., Oil
cooler - outlet

19) Pipe assy., Oil cooler - inlet
20) Clip, Oil cooler pipe
21) Seal, Oil
filler pipe to case

22) Connector, Oil cooler pipes to trans. (Short) 23) Washer, Cooler line to connector - copper
24) Connector, Oil
cooler pipes to
trans.(Long)

25) Pipe assy., Oil filler
26) Clip, Vacuum pipe to flywheel housing


The illustrated parts break down illustrates individual part placement in the assembly.
